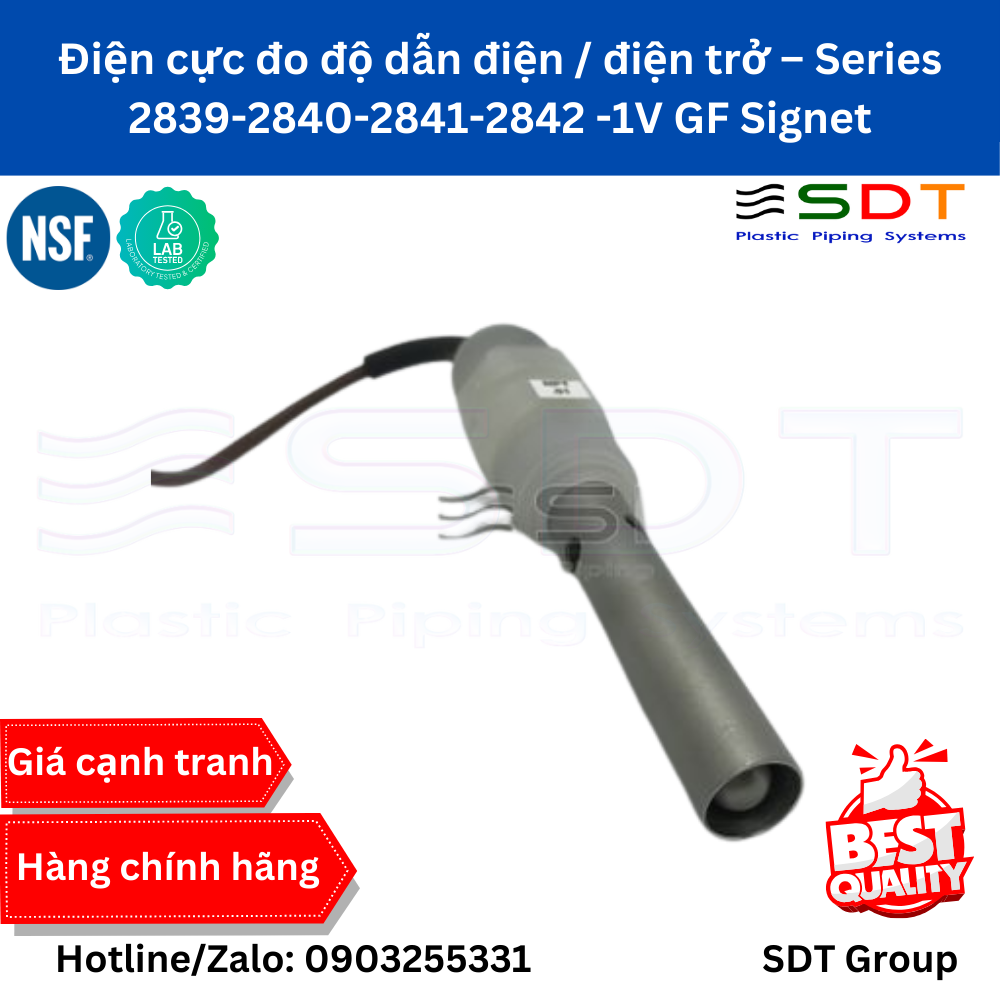

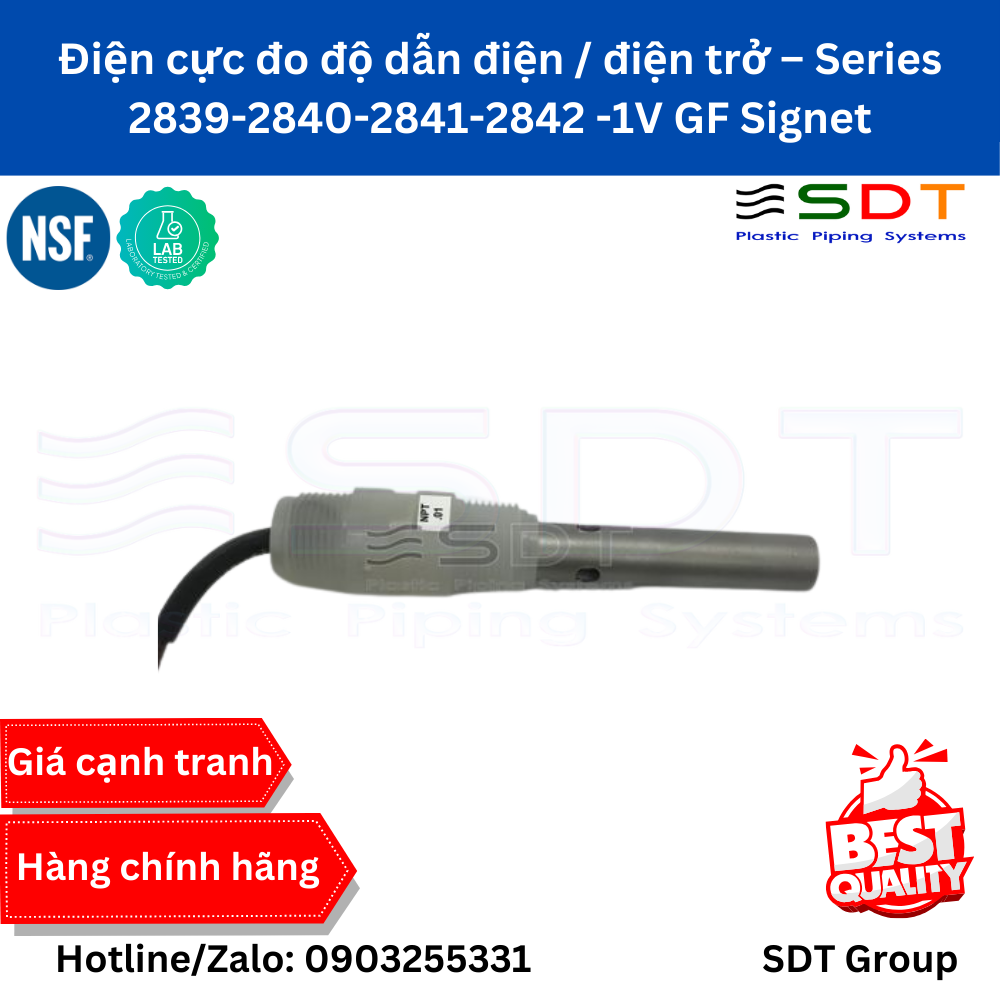

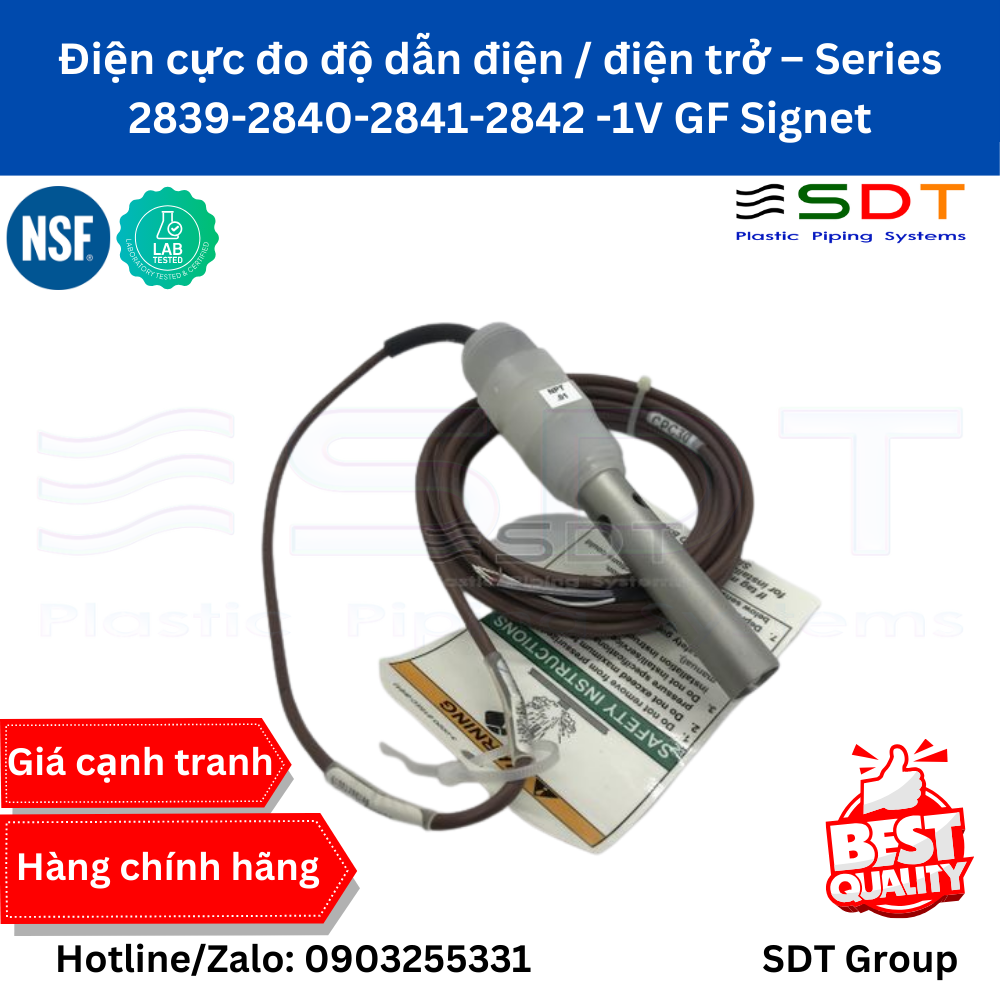

Đầu đo điện dẫn 2839-2840-2841-2842 -1V GF Signet

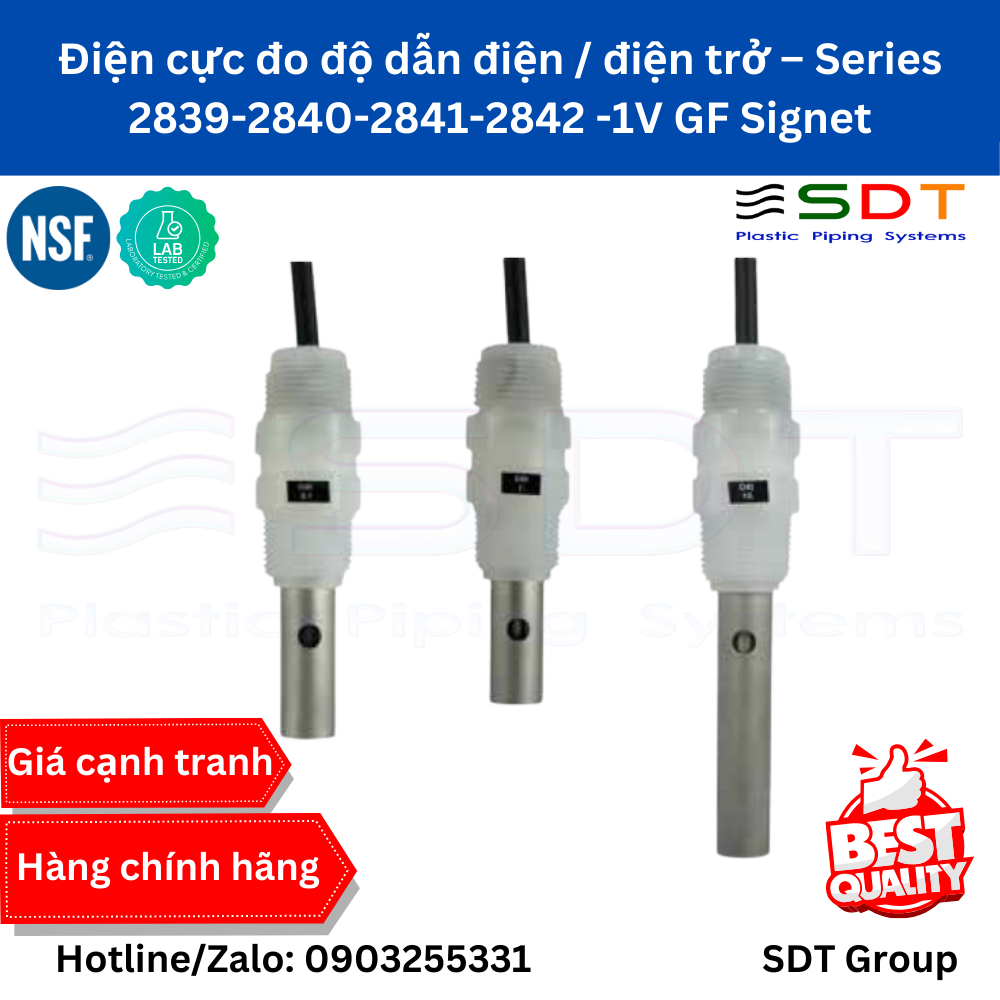

The 2839-2842 Conductivity/ Resistivity Electrodes are available in four cell constants from 0.01 to 10.0 cm-1, and are suitable for a wide variety of applications from high purity water quality monitoring to weak acids and bases. 316SS electrode surface finishes are controlled in a precision bead blasting operation to ensure measurement accuracy and repeatability.

The PEEK^TM insulator and process connections are injection over-molded to minimize variance between electrodes. Double threaded connections in either 3/4 in. NPT or ISO 7/1-R 3/4 enable quick and easy installation in submersible or in-line configurations. Transmitter integral mounting kit and junction boxes are available as accessories.

Features
• ± 2% accuracy - Custom calibration certificate provided
• Dual-threaded
• Compact electrode length for easy in-line installation in small pipe sizes
• Triple orifice flow-through design reduces clogging and bubble entrapment
• 316 SS electrodes with injection molded PVDF process connections and insulators
• Meets USP requirements

Fields of Application:

• Water Treatment & Water Quality Monitoring
• Reverse Osmosis
• Deionisation
• Cooling Tower and Boiler Protection
• Distillation
• Desalination
• Demineraliser
• Semiconductor
• Aquatic Animal Life Support System

Order Information
