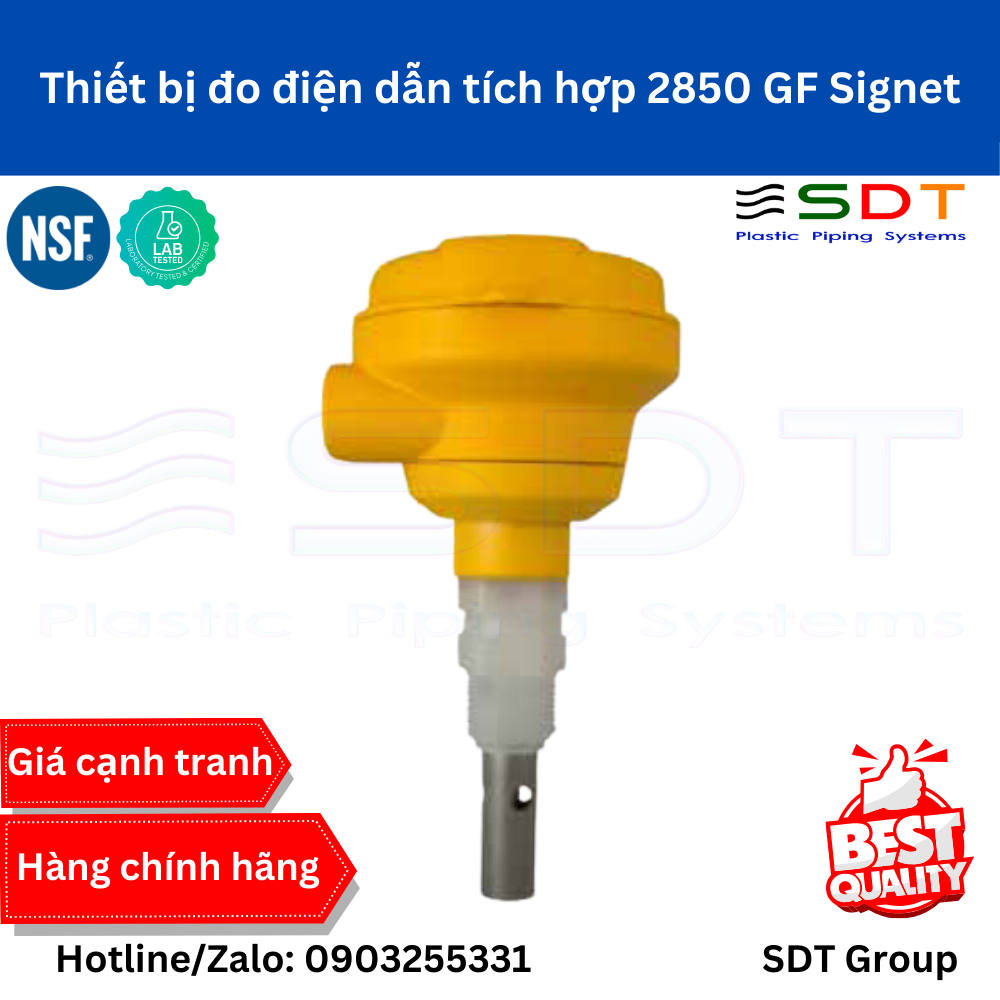

Thiết bị đo điện dẫn tích hợp 2850 GF Signet

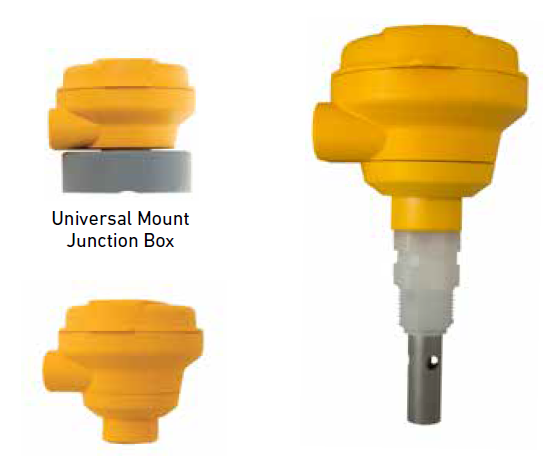

The Signet 2850 Conductivity/Resistivity Sensor Electronics are available in various configurations for maximum installation flexibility. The universal mount version is for pipe, wall, or tank mounting and enables single or dual (digital output only) inputs using any standard Signet conductivity / resistivity sensor. The threaded j-box version can be used with these same Signet sensors for submersible sensor mounting. It is also available as a combined integral system configuration for in-line mounting and includes a conductivity electrode in a choice of 0.01, 0.1, 1.0, 10.0, or 20.0 cm-1 cell constants. The 2850 is ideal for applications with a conductivity range of 0.055 to 400,000 µS or a resistivity range of 100 MΩ to 10 kΩ. Each range can be inverted and are field selectable.

All 2850 units are available with a choice of two outputs, digital (S3L) or 4 to 20 mA. The digital (S3L) output version allows for up to six sensor inputs directly into the Signet 8900 Multi-Parameter Controller. The two-wire 4 to 20 mA output is available with eight 4 to 20 mA output ranges for each electrode cell constant.

All 2850 units are built with NEMA 4X/IP 65 enclosures which allow wiring connections with long cable runs of up to 305 m (1,000 ft). EasyCal is a standard feature that automatically recognises conductivity test solution values for simple field calibration. A calibration tool is available to validate of the sensor electronics according to USP requirements.

Features
• Test certificate supplied with all sensors
• Custom cell constant programmed into the electronics
• Integral mount systems for quick and easy installation
• Compact design for maximum installation flexibility
• Extends the distance between the measuring point and the 9900 Transmitter to 120 m (400 ft)
• Digital (S3L) interface or two-wire 4 to 20 mA output
• EasyCal with automatic test solution recognition
• Dual channel unit available for low cost installation with Signet 8900 Multi-Parameter Controller
• For use with ALL Signet conductivity electrodes

Fields of Application:

• Water Treatment and Water Quality Monitoring
• Reverse Osmosis
• Deionisation
• Demineraliser, Regeneration & Rinse
• Scrubber, Cooling Tower and Boiler Protection
• Aquatic Animal Life Support System

Order Information
