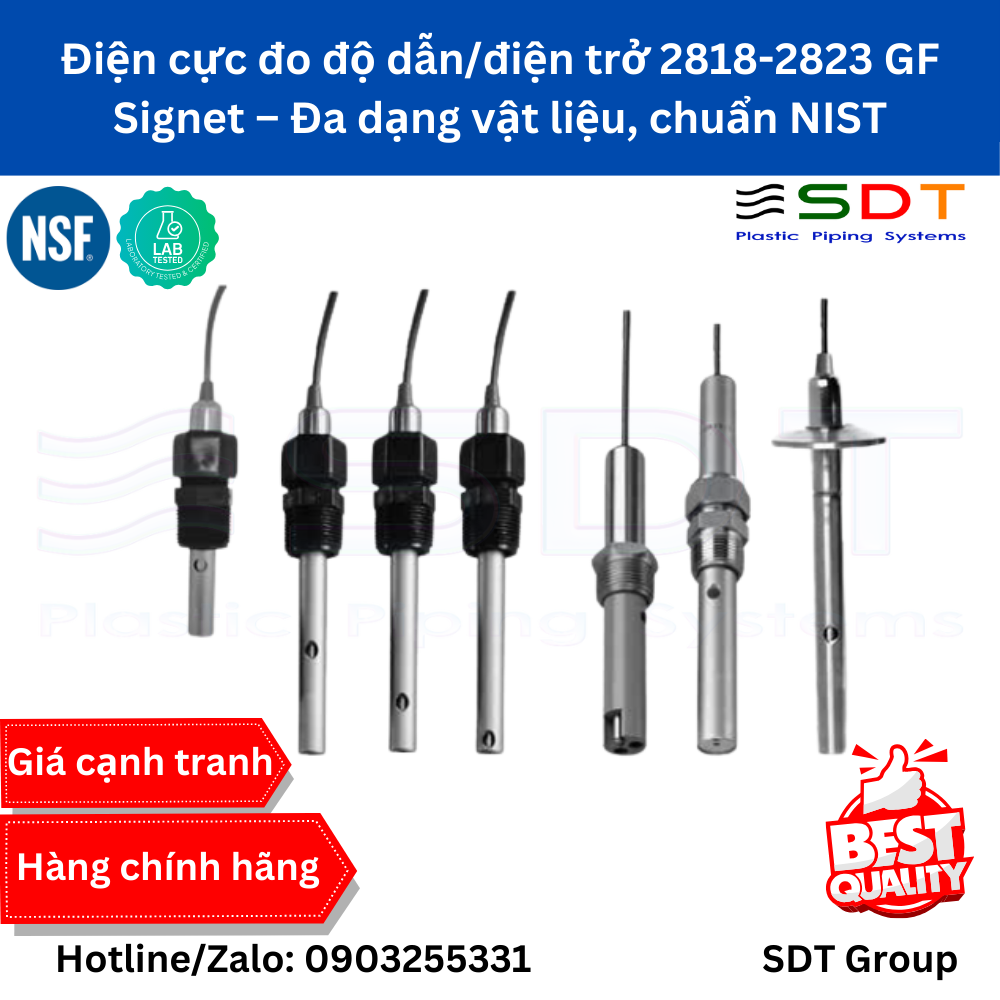

Đầu đo điện dẫn 2818-2823 GF Signet

Signet Conductivity/Resistivity electrodes are designed to provide versatile installation and accurate sensing across a very broad dynamic range. These electrodes are built with a controlled surface finish to ensure accuracy and repeatability. The standard electrode is constructed 316 SS or Titanium, but there are other materials available for maximum chemical compatibility. Reversible threads or sanitary flanges allow for maximum installation versatility.

Sanitary flange versions are availabe with an optional NIST Traceability Certificate to meeet USP requirements. Coupled with Signet patented measuring circuitry, a three decade measurement range is achieved without the need for troublesome electrode platinisation. A platinum RTD (PT1000) located within the electrode allows optimal temperature sensing.

Features
• Standard process connections
- ¾ in. NPT Polypro
- ¾ in. NPT SS on 10 and 20 cell
- Tri-clamp 1 -1½ in., 2 in.
- Opt. ½ in. NPT 316 SS
• 316 SS or Titanium (indicated tri-clamp only) standard electrode
• Alternative electrode materials available
- Hastelloy-C
- Monel
- Titanium
• In-line or submersible mounting
• NIST traceable certified cells ±1% meetUSP requirements

Fields of Application:

• Pure Water Treatment
• Reverse Osmosis
• De-ionization
• Distillation
• Boiler Condensate
• Semiconductor Water Production
• Rinse Water Monitoring and Control
• Chemical Concentrations
• Cleaner and Degreaser Concentrations
• TDS (Total Dissolved Solids)
• Salinity
• USP Purified Water and WFI Water Production
