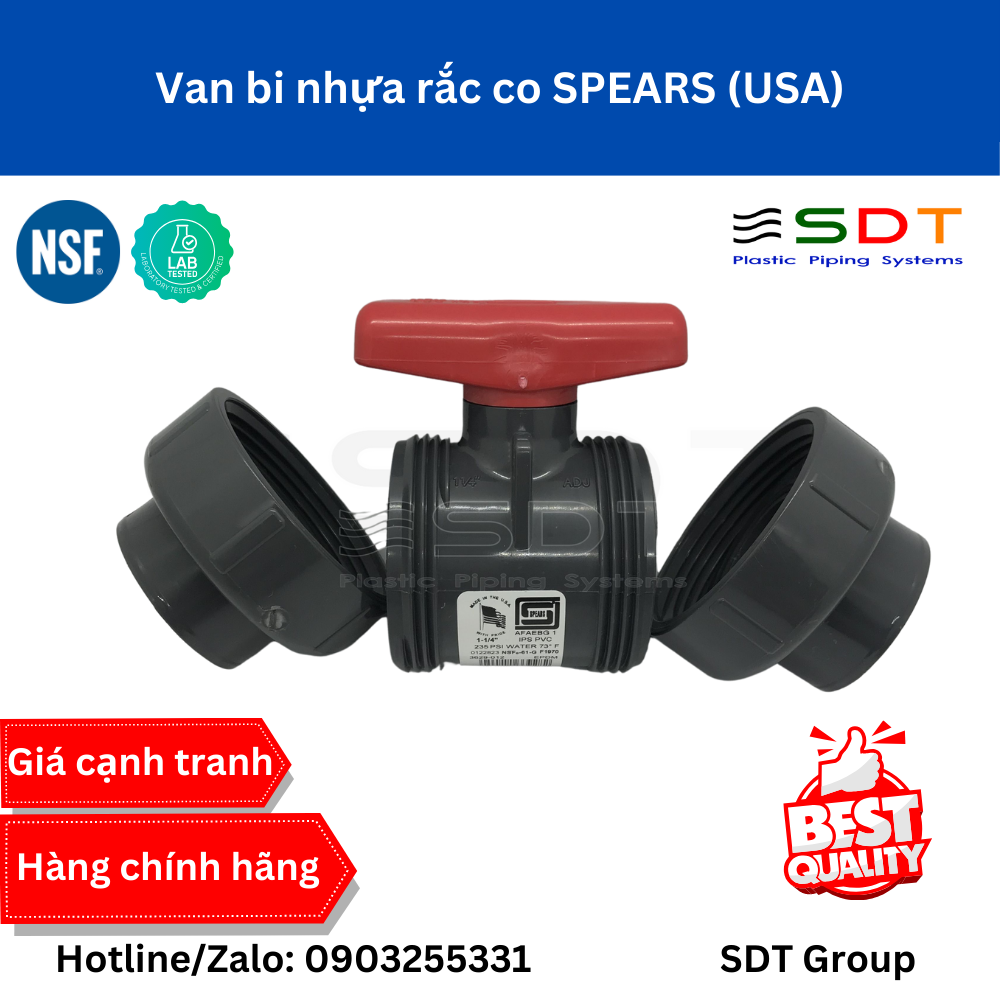

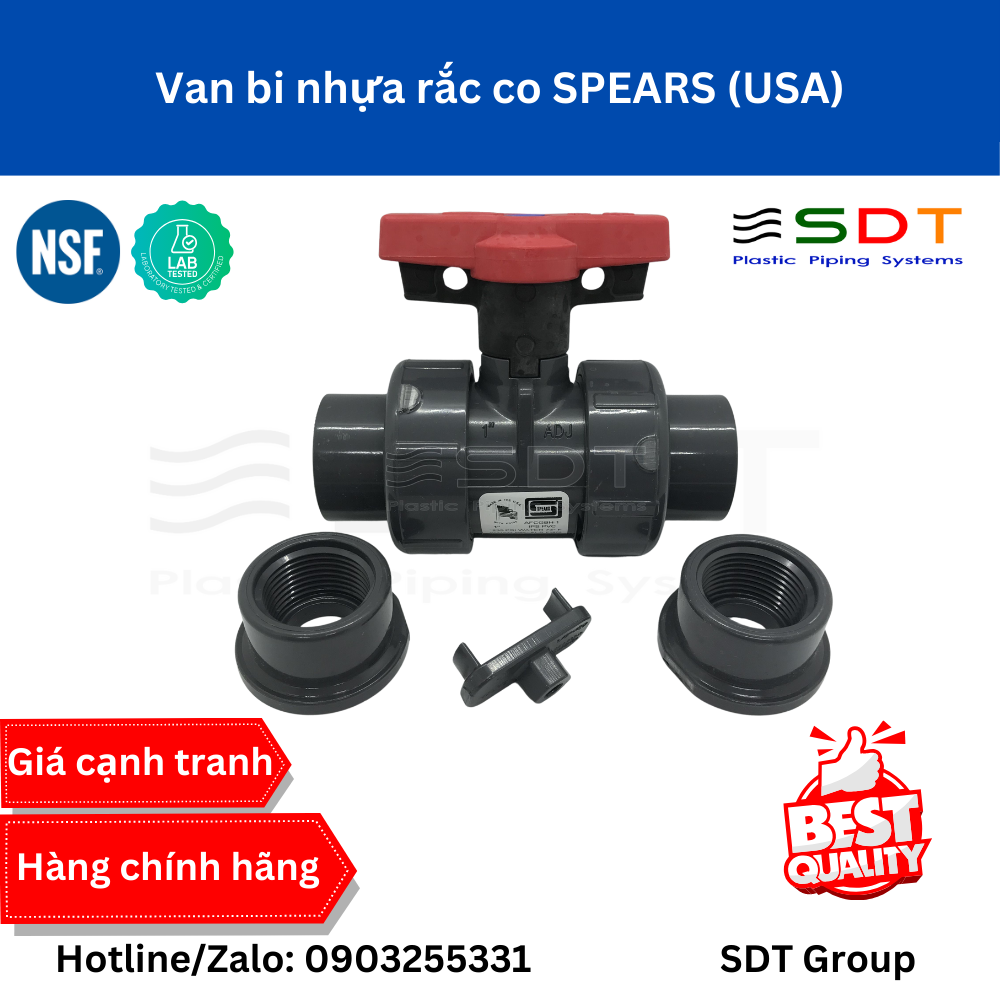

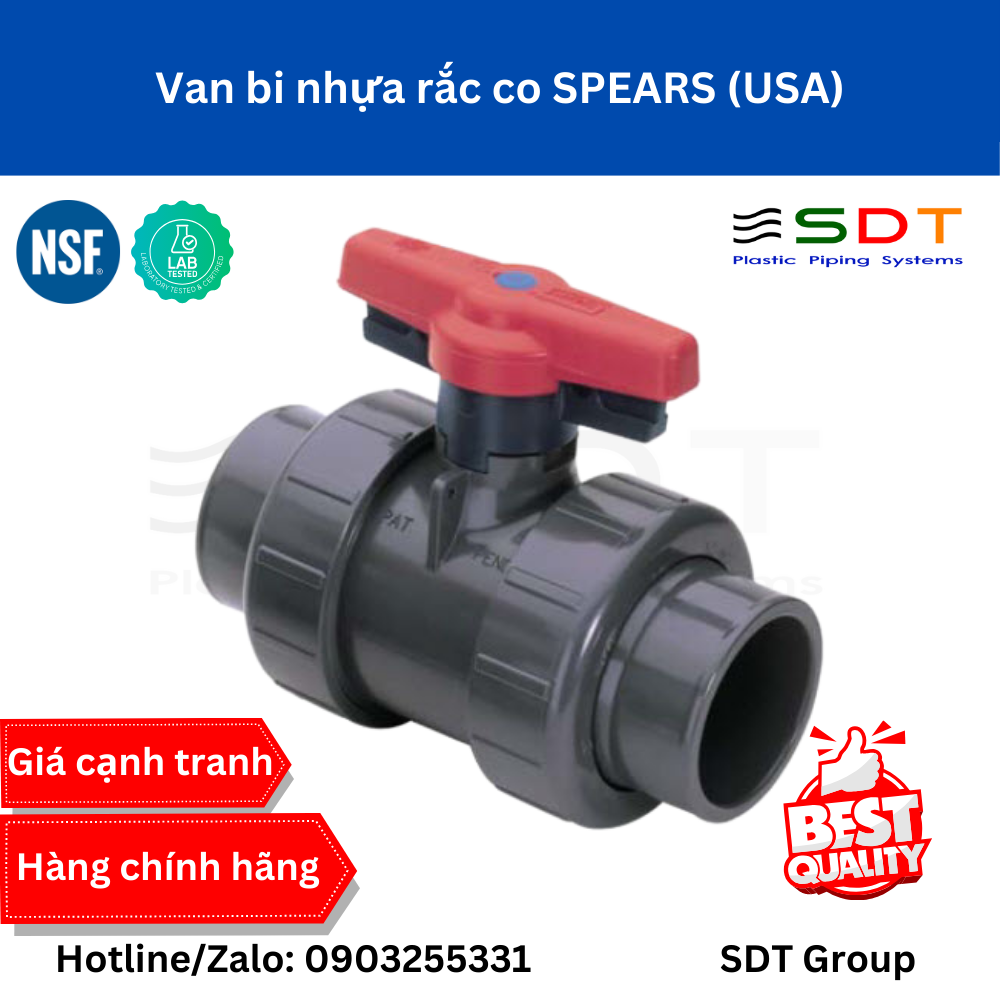

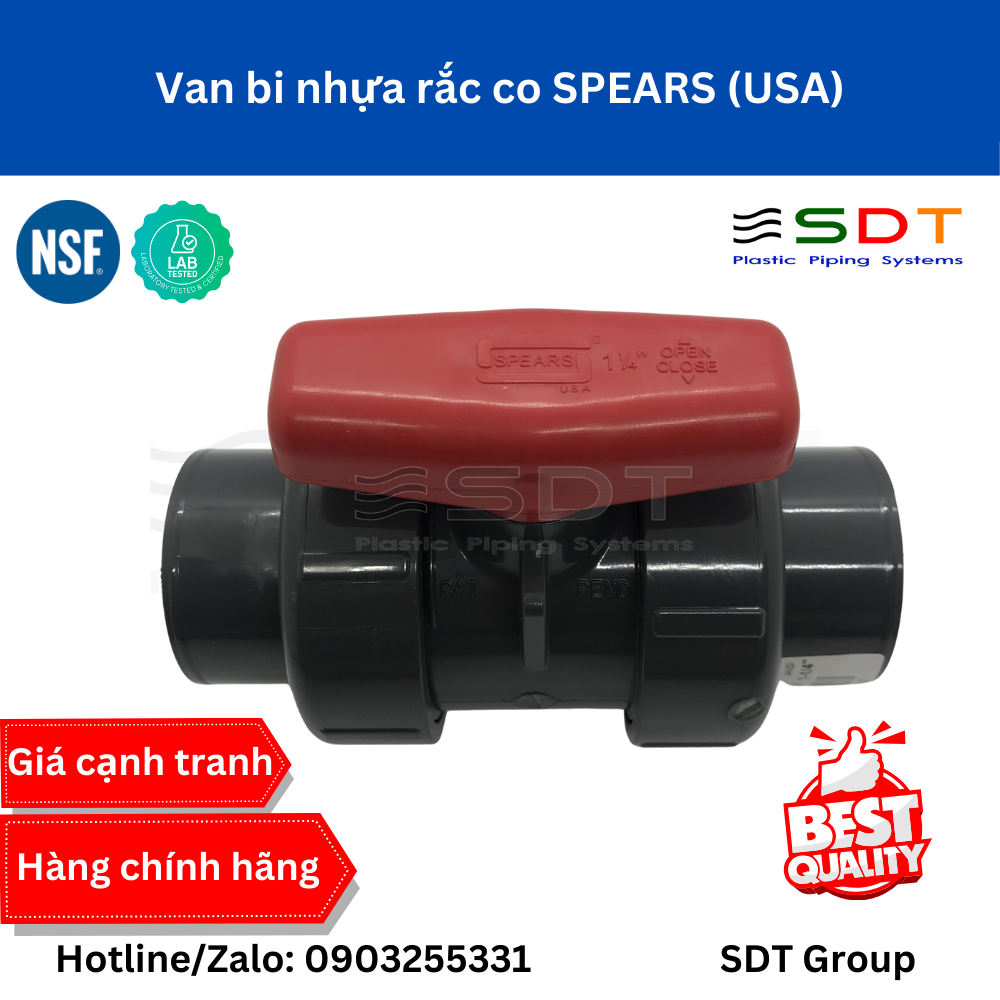

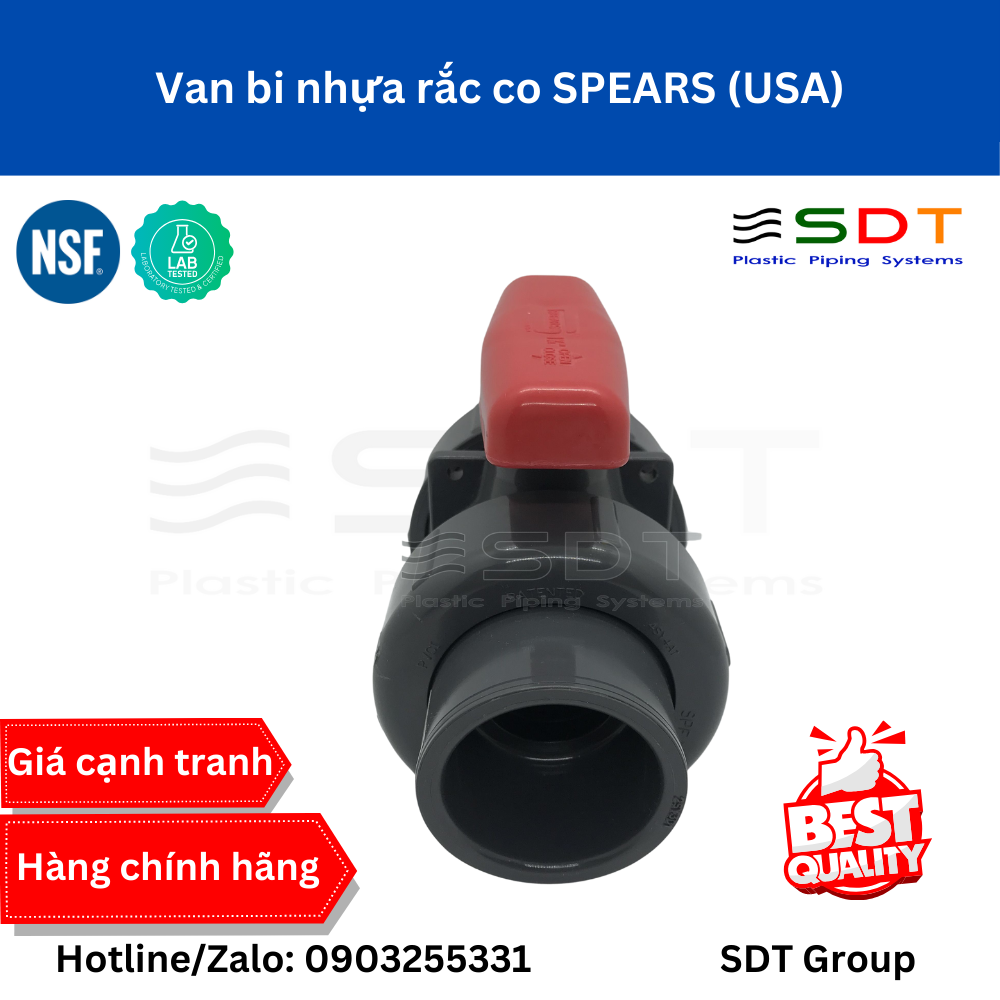

Van bi nhựa rắc co SPEARS (USA)

Van bi nhựa rắc co đôi Upvc - ứng dụng van bi nhựa rắc co đôi là gì?

Van bi nhựa rắc cô đôi Upvc là một loại van được ứng dụng trong nhiều hệ thống xử lý nước thải, nước cấp, hệ xử lý nước sạch, RO và hệ thống đường dẫn có chứa lưu chất là hóa chất. Với chất liệu UPVC van nhựa rắc co đôi chịu được nhiệt độ cao, áp lực cao và chịu được hóa chất

- Các tên gọi của van bi nhựa:

+ Van bi nhựa rắc co đôi

+ Van bi nhựa UPVC rắc co đôi

+ Van bi nhựa tay gạt

+ Van bi nhựa kết nối socket

+ Van bi nhựa chuẩn Ansi

Ứng dụng thực tế của van bi nhựa rắc co đôi

Xử lý nước sạch, nước thải, sản xuất hóa chất...

Sản xuất thực phẩm, đồ uống. bán dẫn điện tử...

Mạ, điện phân, và các ứng dụng hóa chất khác..

Thông số kỹ thuật:

• Vật liệu thân: UPVC, CPVC
• Ball seats: PTFE
• O-Ring: EPDM, VITON (FPM)
• Kích cỡ: 1/2'' - 4''; 20mm - 110mm; DN15, 20, 25, 32, 40, 50, 75, 80, 100; phi 21, 27, 34, 42, 49, 60, 75, 90, 114
• Tiêu chuẩn: ANSI (ASTM), JIS, DIN
• Kiểu kết nối: Keo dán, Nối bích, Nối ren

Since 1969, Spears® Manufacturing Company has developed high-quality thermoplastic piping system components to better meet industry needs. Spears® thermoplastic valves have been developed through years of product improvement testing, combined with the latest in computer-aided engineering and manufacturing technology. Today, Spears® valves are recognized for their quality, reliability, and long service life. Backed by the best in customer service and product availability, Spears® valves are the first choice for use in a wide variety of applications, including Industrial & Chemical Processing, Turf & Irrigation, Pool & Spa, and numerous Original Equipment Manufacture products.

Ball valves derive their name from the on/off function accomplished using a flow-controlling ball located in the center of the valve body. A hole through the center of the ball (valve bore) connects the inlet and outlet sides of the valve for fluid stream transfer. The ball rotates 90° on an axis perpendicular to the fluid stream to block flow in the “off” position. The ball is held in place between two valve seats, which serve as a “bubble tight” seal off while providing lubrication during valve operation. Elastomer O-rings are used in the stem and seal carrier to prevent fluid leakage. Pressure drop is virtually eliminated in the full-open position since the valve bore is the same size as Schedule 80 system piping. The T-Style ball valve is a special configuration incorporating a Tee fitting at one end of the valve. This design maintains proximity of the valve to the fluid main line to minimize the “dead leg” of potential fluid accumulation, where required by the specific application.

Spears offers to customers many kinds of ball valves as below:

True Union 2000 Industrial Ball Valves

This multi-featured, space-saving quarter-turn shutoff valve is designed to meet the demands of today's industrial and chemical processing applications. PVC and CPVC valves are available in IPS size 1/2" through 6" with socket/regular thread, SR (Special Reinforced) thread, flanged or spigot end connectors, and 8" Venturied valve with a socket or flanged ends. Also available in the metric socket and BSP thread sizes 1/2" through 2".

Features:

• Chemical & Corrosion Resistant PVC or CPVC Construction
• Also Available in Spears® High Purity, Low Extractable PVC Material
• Interchangeable with all True Union 2000 Valves Mates with Union 2000 Pipe Unions
• High Impact Polypropylene Handle
• Built-in Handle Lockout
• Schedule 80 Full-Bore Design
• Strong, Buttress Thread Union Nuts
• Spears® Double O-ring Safe-T-Shear® Stem Design
• EPDM or FKM O-rings
• Spears® Safe-T-Blocked® Seal Carrier
• Self Adjusting PTFE Floating Seat Design
• Fully Serviceable, Replaceable Components
• Sizes 1/2" - 4" pressure rated to 235 psi @ 73°F. Sizes 6" and 8" Venturied and all Flanged to 150 psi @ 73°F.
• EPDM Valves NSF® Certified for Potable Water use
• Suitable for Vacuum Service
• Assembled with Silicone-Free, Water Soluble Lubricants
• Manufactured to ASTM F 1970

True Union 2000 Standard Ball Valves

Economical, low profile quarter-turn shutoff valve is excellent for general purpose and many O.E.M applications. PVC and CPVC valves are available in IPS size 1/2" through 4" with socket, regular thread, SR threaded (Special Reinforced), flanged or spigot end connectors.

Features:

• Chemical & Corrosion Resistant PVC or CPVC Construction
• Interchangeable with all True Union 2000 Valves, Mates with Union 2000 Pipe Unions
• High Impact Polypropylene Handle
• Schedule 80 Full-Bore Design
• Strong, Buttress Thread Union Nuts
• Spears® Single O-ring Safe-T-Shear® Stem Design
• Spears® Safe-T-Blocked® Seal Carrier
• Replaceable PTFE/HDPE Floating Seat Design
• EPDM or FKM O-rings
• Sizes 1/2" - 2" pressure rated to 235 psi @ 73°F
• Sizes 2-1/2" - 4" and all flanged pressure rated to 150 psi @ 73°F
• EPDM valves NSF® Certified for Potable Water use
• Suitable for Vacuum Service
• Assembled with Silicone-Free, Water Soluble Lubricants
• Manufactured to ASTM F 1970
