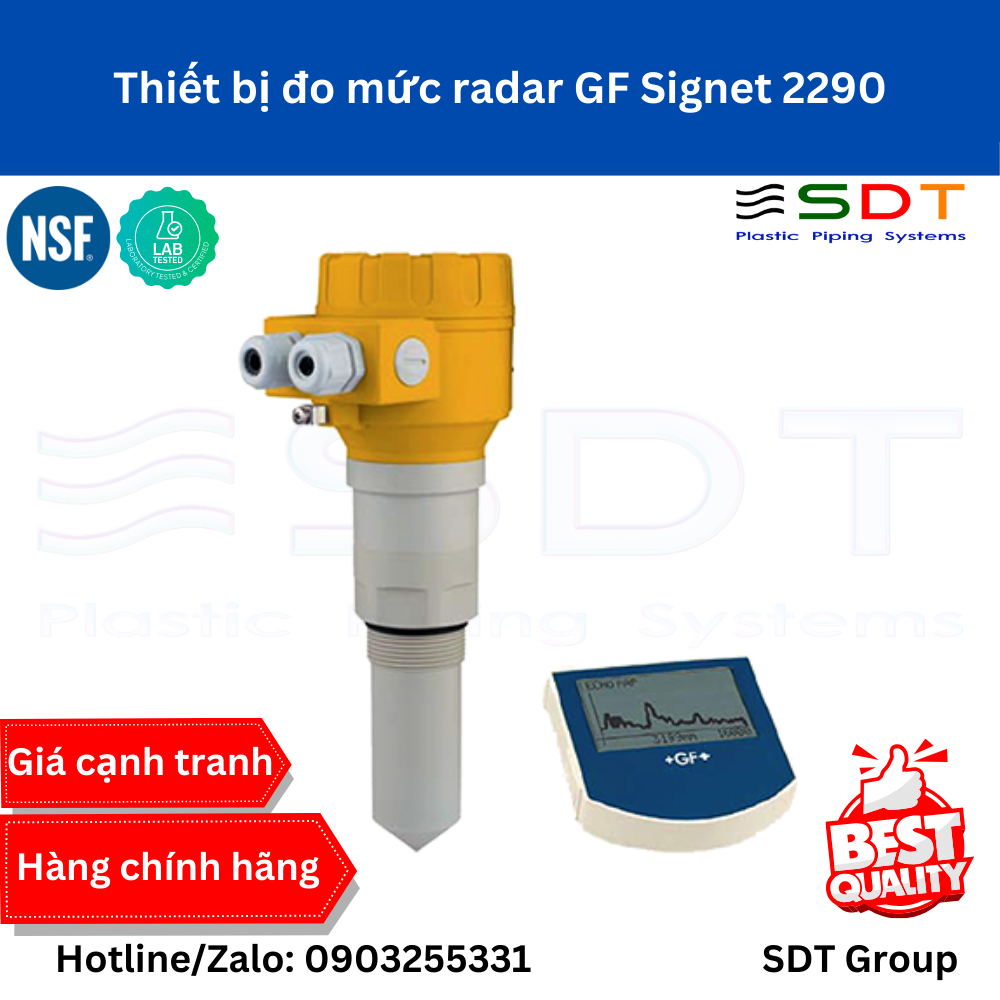

Thiết bị đo mức radar GF Signet 2290

Features
• 19° beam angle
• Tank mapping function
• Large dot matrix LCD display
• Predefi nded tank shapes
• Works with fumes, condensation, and ligh foam layers

Descriptions

The 25 GHz (K-band) 2290 Pulse Radars are the most progressive non-contact level transmitter technology for industrial processes. With an excellent accuracy, compact antennas and a user-friendly set-up the 2290 is an eff ective, simple, low cost choice for demanding level applications. GF’s new K-band radar featuring ±3 mm (±0.1inch) accuracy and short dead band excels with its full plastic housing. Its antenna range incorporates a stainless steel horn and enclosed plastic enclosure choices.
The enclosed antenna versions can be replaced without removing the antenna enclosure from the process. Local programming of type 2290 is aided by a plug-in display module. The signal processing algorithm of the 2290 is based on years of experience with non-contact level measurement making it an excellent choice for applications simple and challenging alike.

Applications
• Bulk Storage Tanks
• Day Tanks
• Process vessels for Mixing and Batching
• Buff er Tanks
• Conditioning vessels
• Metal or Plastic

Order Information:

Accessories:
