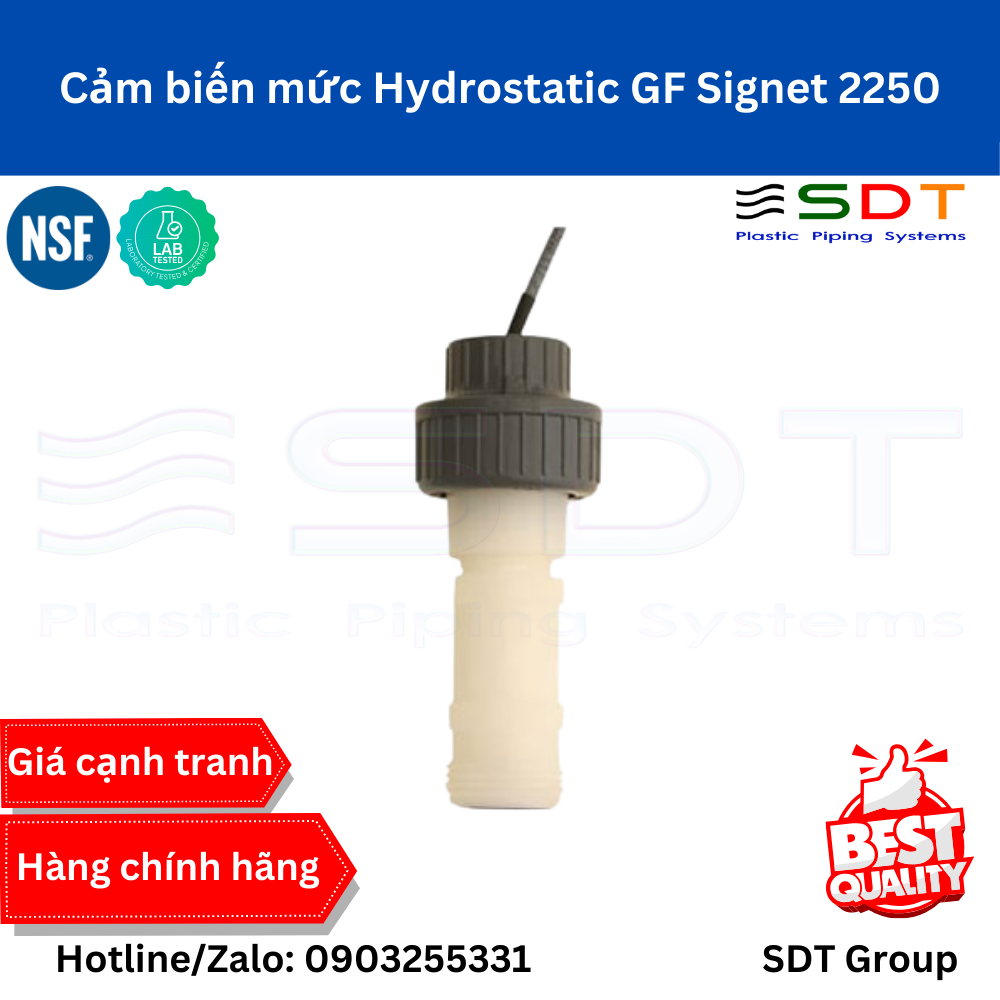

Cảm biến mức Hydrostatic GF Signet 2250

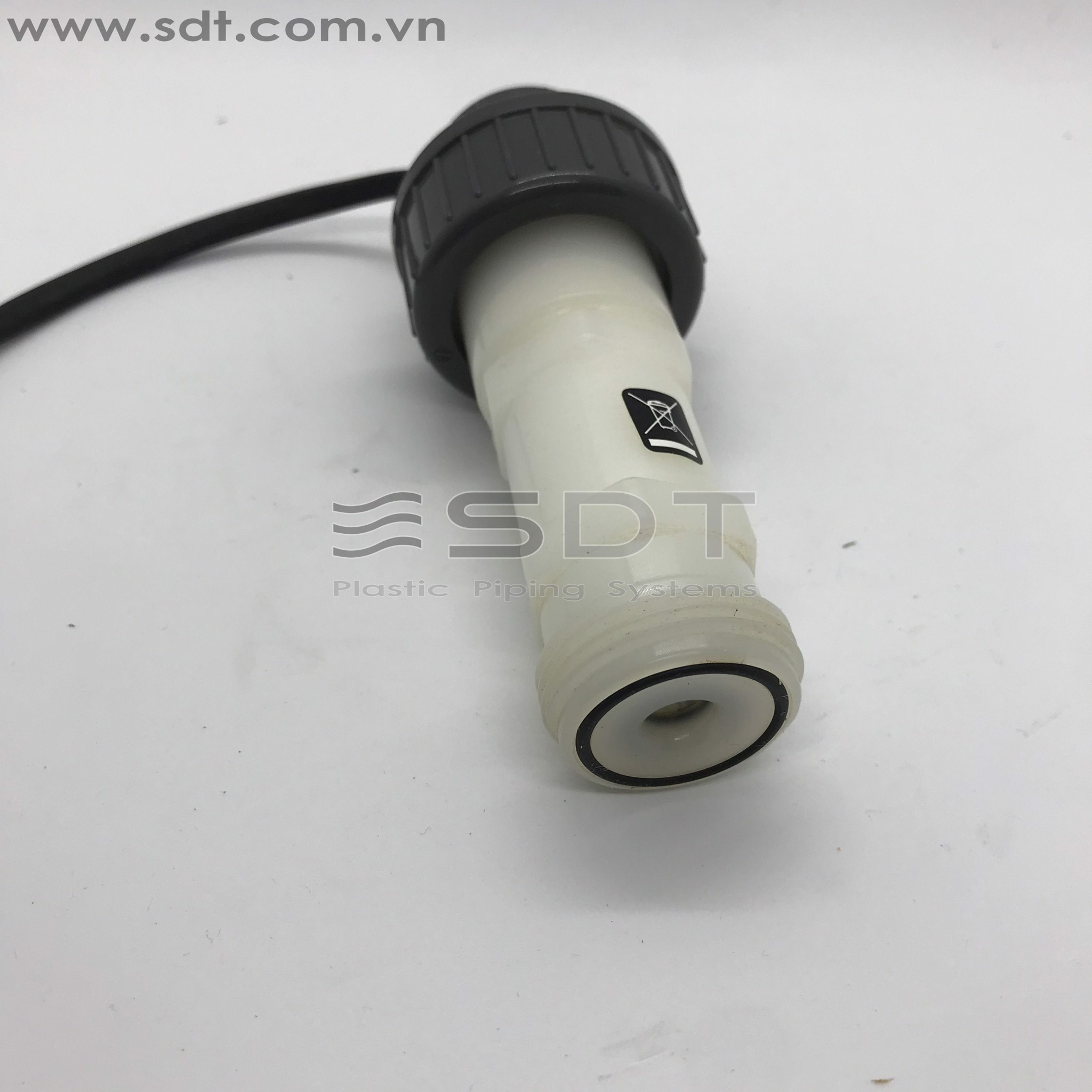

The Signet 2250 Hydrostatic Level Sensor for level and depth control has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. Utilising hydrostatic pressure the 2250 disregards false level signals from steam vapors, foam or any other debris on the liquid surface. Two pressure ranges allow for optimal resolution matched to your sensing needs. Solid state circuitry eliminates drift (no internal potentiometers).

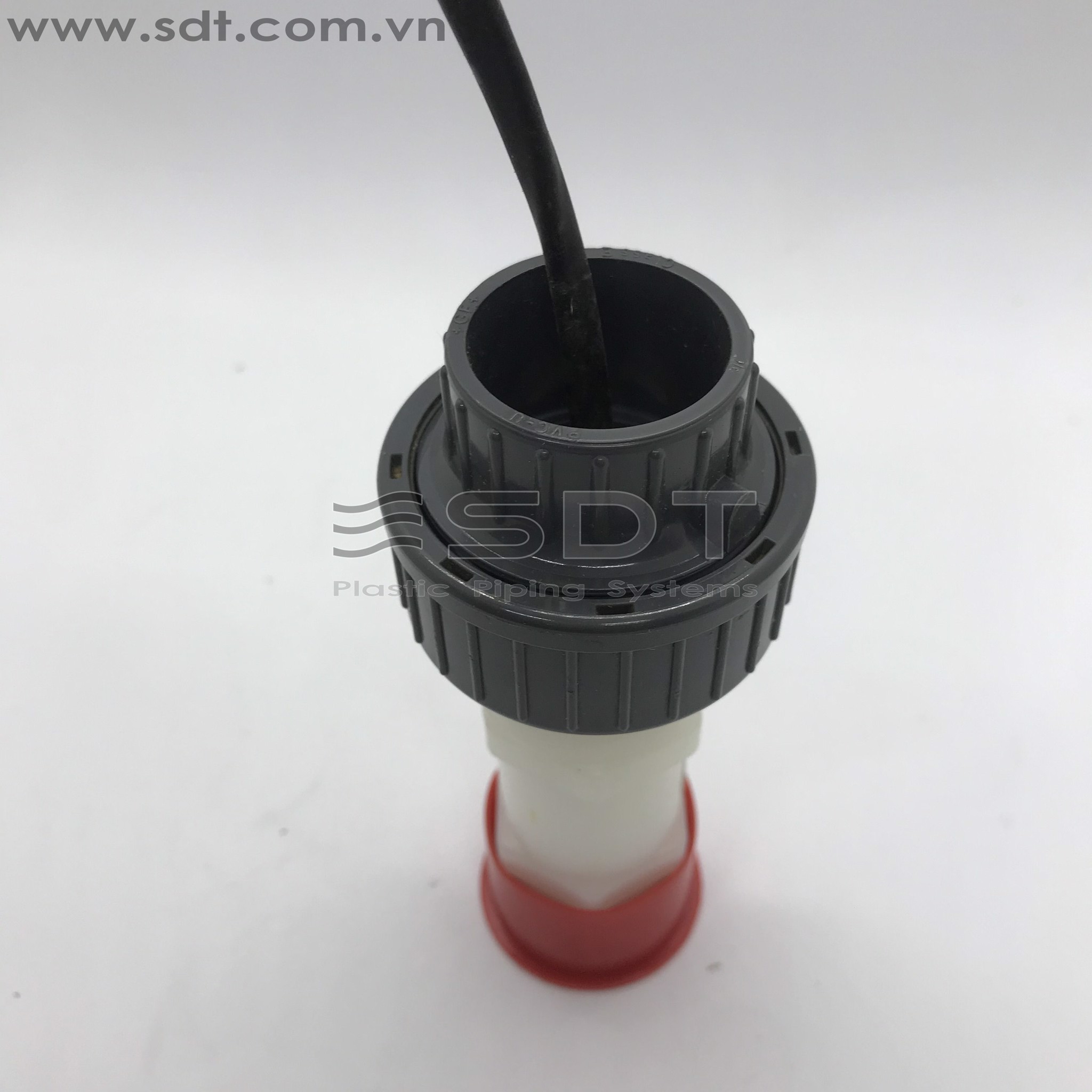

Built-in temperature compensation provides outstanding accuracy over wide temperature ranges. These sensors are available with a proprietary digital output (S3L), or 4 to 20 mA output. The extended cable and capillary tubing with the union connection and a customer supplied conduit, allow submersion in process vessels. Integral adapters (sold separately) may be used to create a compact assembly with field mount versions of the Signet 8250 Level transmitter.

Fields of Application:
• Inventory Management
• Storage Tank Monitoring
• Neutralisation Tanks
• Plating Lines
• Waste Sumps
• Clarifiers
• Overflow Protection

Order Information
