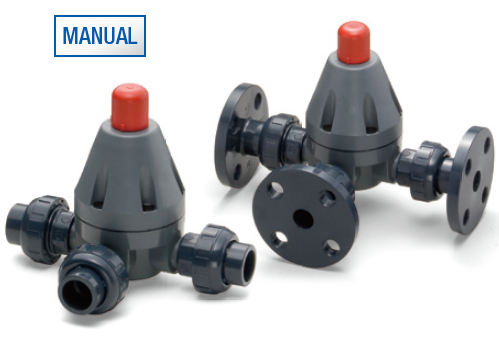

PRESSURE RELIEF TYPE SELF CONTROL VALVE - ASAHI

This valve is used for piping lines and equipment where excessive pressure needs to be prevented. The T-shaped pipe structure allows the fl uid to fl ow in 3 directions.
In addition to the intake and discharge ports located sideways in a straight line (horizontal direction), there is also a discharge port on the lateral side (vertical direction).
If the pressure in the horizontal direction exceeds the set pressure, the valve will open so that the fluid is discharged from the vertically located discharge port.
The pressure dispersion and closure operation allow the valve to maintain the horizontal
pressure constant and reduce the peak pressure.
