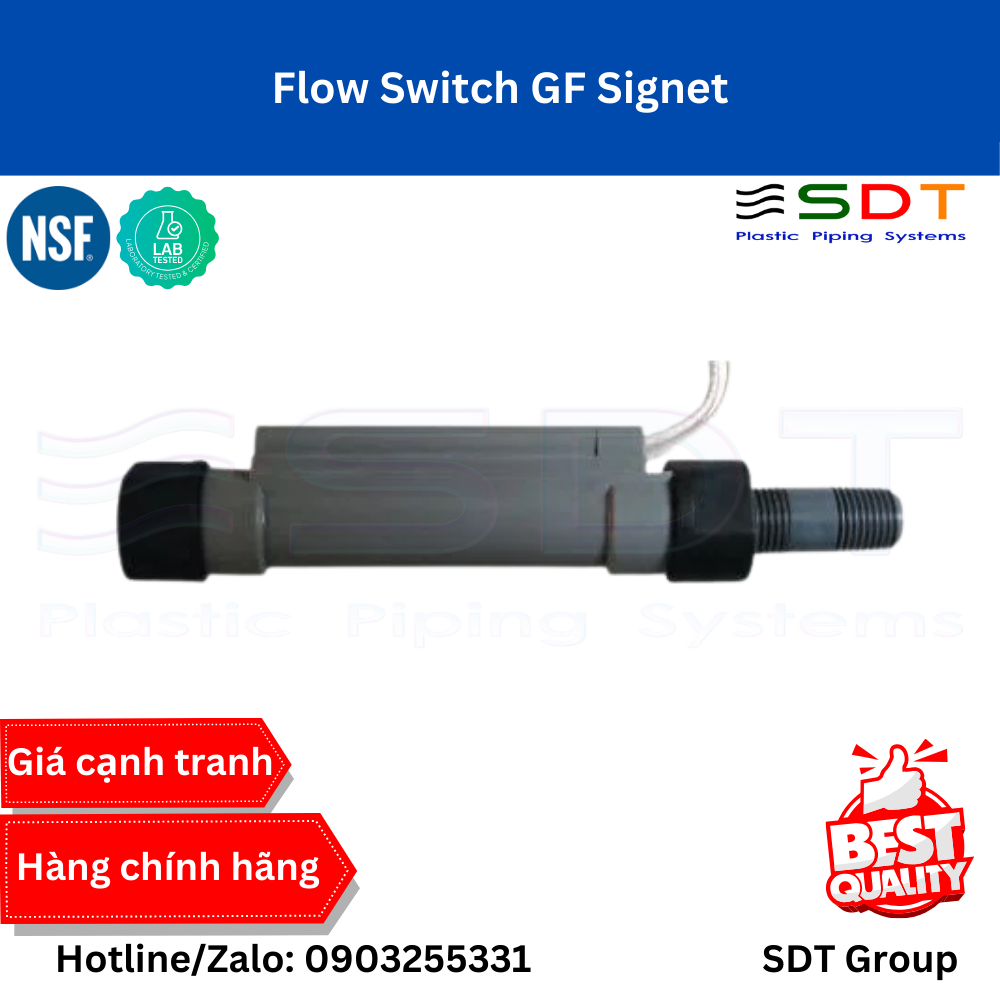

Flow Switch GF Signet

Features
• Saves chemicals cost
• Prevents chemical dosing when flow isinterrupted
• Mounts directly into the 4630 flow cell
• Interrupts power to the 8630-3P mechanical relays

The Signet Flow Switch Kit provides a level of protection and a sense of security to automated processes by protecting against accidental or overdosing of disinfectant solutions such as Chlorine, Sodium Hypochlorite, or Chlorine Dioxide into a system when flow has been interrupted. The flow switch interrupt provides cost saving on chemicals and could also prevent damage to the piping system. It is factory set to deactivate/open when fl ow levels inside the flow cell drop below 0.378 lpm (0.1 gpm) which removes the
supply power to the chemical dosing pumps.

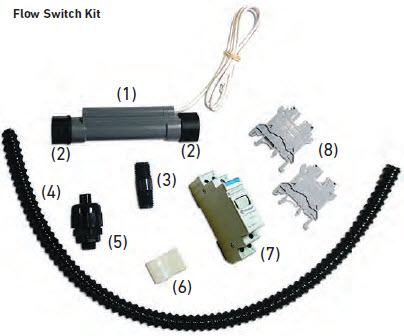

The flow switch kit is easily installed into the 4630 Chlorine Analyzer System's flow cell, and wires into the electrical box in less than 15 minutes. The kit comes complete with a DIN rail mount, 10 amp relay, two terminal connectors, fl ow switch assembly and corrosion resistant flex conduit and cable glands.

Applications

Residual Chlorine Monitoring:
• Water Distribution
• Ground Water
• Surface Water
• HVAC Applications (cooling water)
• Gray Water Dechlorination
• Food and Beverage
• RO Membrane Protection
• Swimming Pools
• Aquariums
• Water Parks
