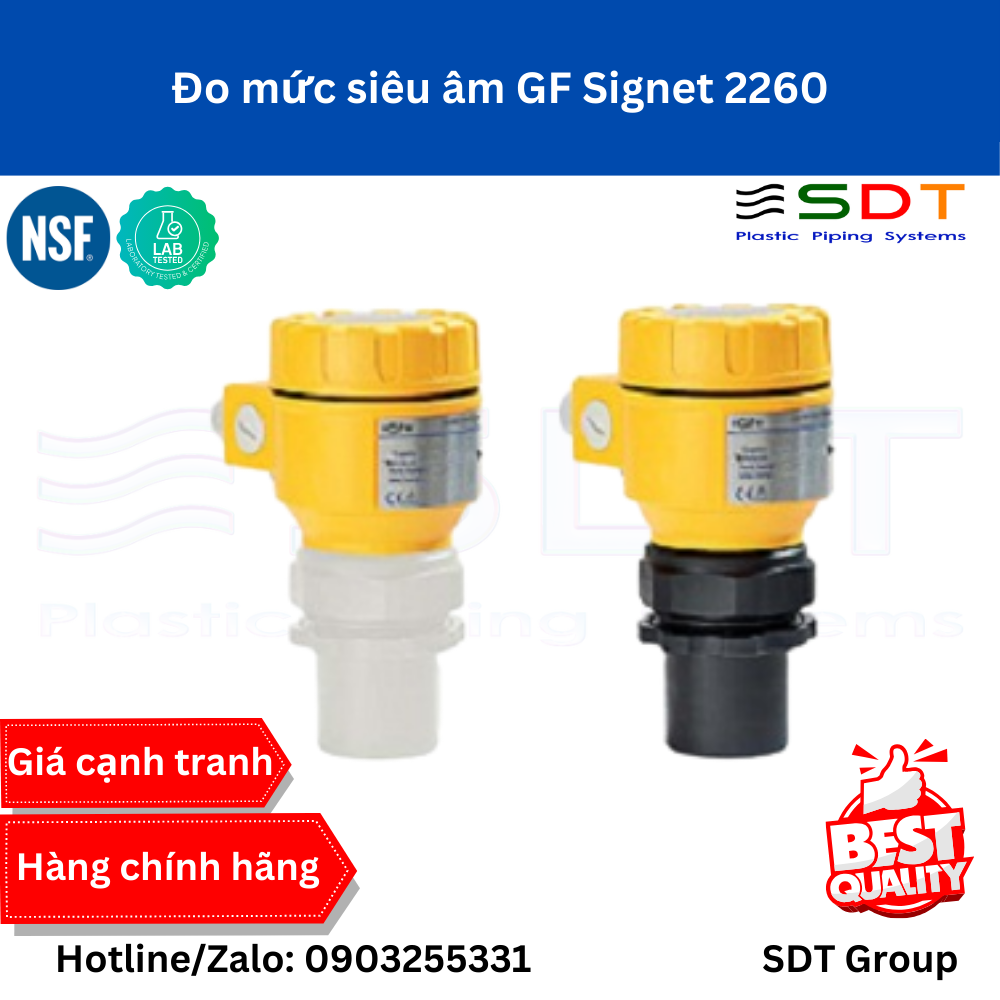

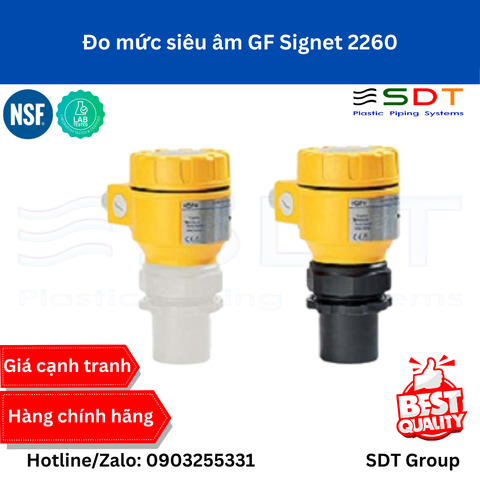

Đo mức siêu âm GF Signet 2260

Features
• 2-wire compact transmitters
• Non-contact level metering
• Narrow 5° beam angle
• Level, volume and open channel fl ow
• Fully temperature compensated electronics
• Outstanding signal processing software providing highly accurate measuring results
• PP or PVDF sensor body provides best chemical resistance
• Quick-set menu for effi cient installation
• Plug-in keypad and display
• SPDT relay for high / low alarm
• 4 to 20 mA / and Optional HART
• Secondary lightning protection
• Intrinsically safe (Option)
• 32-point linearization

Descriptions

The type 2260 is a rugged, high performance ultrasonic level measurement transmitter, having transducer and processing electronics and a display/programming unit incorporated in one single housing. All type 2260 Level Transmitters are using established high end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to a distance of 49 feet.

For small, stand alone tanks the transmitter provides a simple 2-wire 4 to 20 mA output, with additional relay contacts. It can be programmed using push buttons and the large, graphic display. For large and/or multiple tank applications versions with HART interface are recommended, communicating directly with a panel mount controller or PLC. The HART protocol can easily be used for programming these versions.

Applications
• Water Treatment
• Corrosive Industrial Waste Treatment
• Batching
• Filling
• Bulk Transfer
• Dirty Liquids

Order Information:

Accessories:
