Công tắc mức kiểu điện dung Capacitance Switch-Tek™ - Flowline

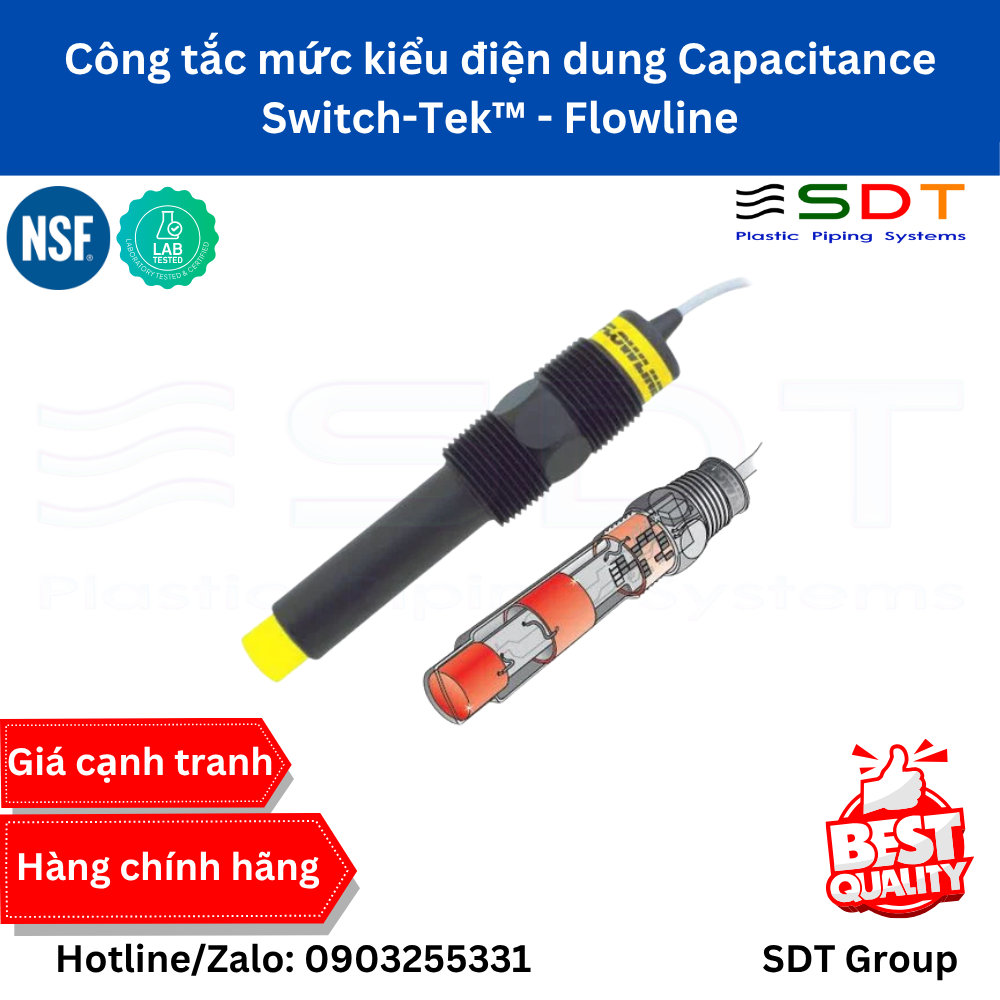

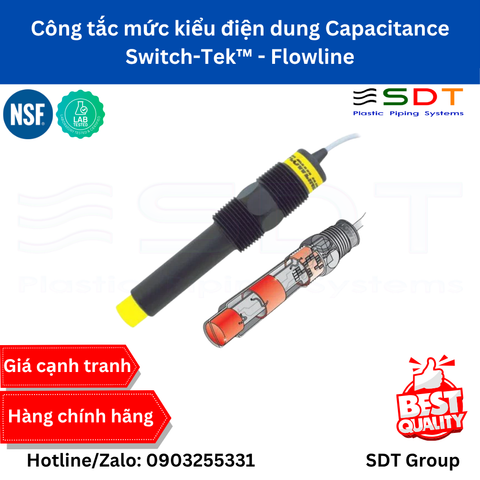

Switch-Tek™ LP15 Capacitance Liquid Level Switch

Application

The general purpose guard capacitance point level switch provides high or low liquid level detection of water based conductive liquids with light coating, crystallizing or scaling characteristics with a 1A relay output. Media examples include copper sulfate and brine. For best performance, install the sensor vertically and the RF guard eliminates the coating signal path between the active and reference electrodes. The submersible PP liquid level sensor can be mounted inside the tank or through non-metallic tank walls as a high level alarm or low level alarm.

Features

• Guard circuit optimizes performance in coating type media
• Submersible PP sensor body and cable for corrosive liquids
• 60VA SPST relay selectable NO or NC via power supply wiring polarity
• Compatible with Switch-Pak fitting for vertical tank installation

Key Benefits

• Ideal for use as a high or low level switch in general purpose applications
• Well suited for use in corrosive liquids
