Thiết bị đo mức siêu âm EchoSonic LU23-29 - Flowline

Application

The general purpose ultrasonic transmitter provides continuous level measurement up to 32.8’ (10m) with a 4-20 mA signal output, and is configured via our free WebCal® software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or waste liquids, and is selected for bulk storage, tanker truck, day tank, process tank, waste sump, neutralization tank, open channel, chemical feed and clarifier applications.

Features

• Offered in 4 measurement ranges from 9.8’ (3m) to 32.8’ (10m)
• Configuration is fast and easy via WebCal software and USB adapter
• Narrow 2” or 3” beam width for applications with limited measurement space
• Short 4” or 8” dead band maximizes the measurable filling capacity of the tank
• PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
• Automatic temperature compensation for accurate measurement

Range

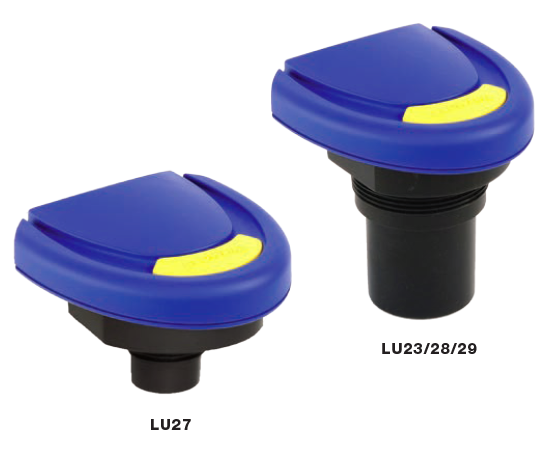

• LU27: 4” to 9.8’ (10cm to 3m)
• LU23: 8” to 18.0’ (20cm to 5.5m)
• LU28: 8” to 26.2’ (20cm to 8m)
• LU29: 8” to 32.8’ (20cm to 10m)
