Công tắc mức đơn điểm Switch-Pak™ - Flowline

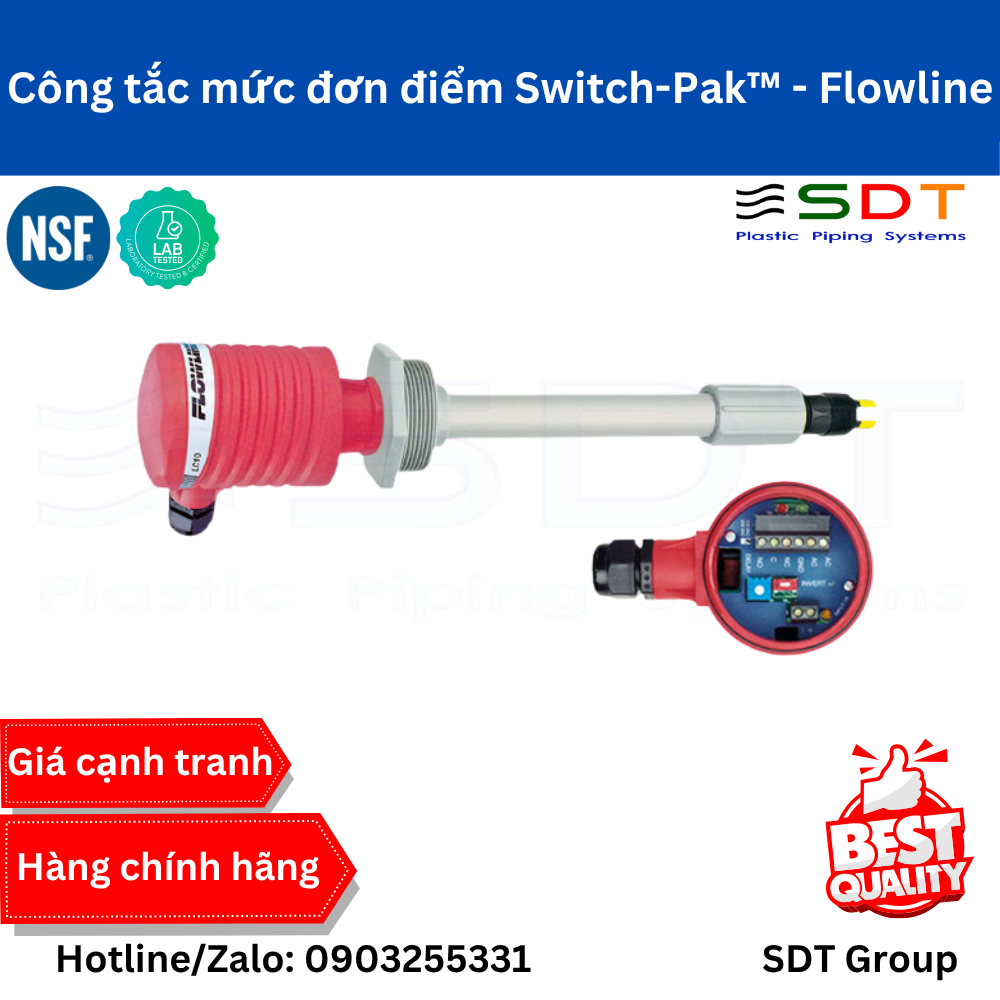

Switch-Pak™ AX13 with compact level transmitter

Application

The general purpose level switch package provides high or low liquid level detection with one 16A compact relay controller for pump or valve shut off. The optional flash alarm brings attention to alarm conditions. Available in three level sensor technologies, choose the sensor type based upon your application media. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, requiring detection and control.

Features

• Fail-safe relay shut off of pumps or valves with adjustable time delay
• Offered in three sensor technologies for broad application coverage
• Rugged polypropylene or PVDF construction for us with corrosive liquids
• Easy setup with LED indicators for sensor, power and relay status
• Optional strobe brings immediate attention to level alarm conditions
• Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
• Invert switch changes relay state from NO to NC without rewiring

Key Benefits

• Complete solution to shut off a pump or close a valve to prevent overflows or run dry - just add power
• Available in three sensor technologies and two materials for all types of liquid media

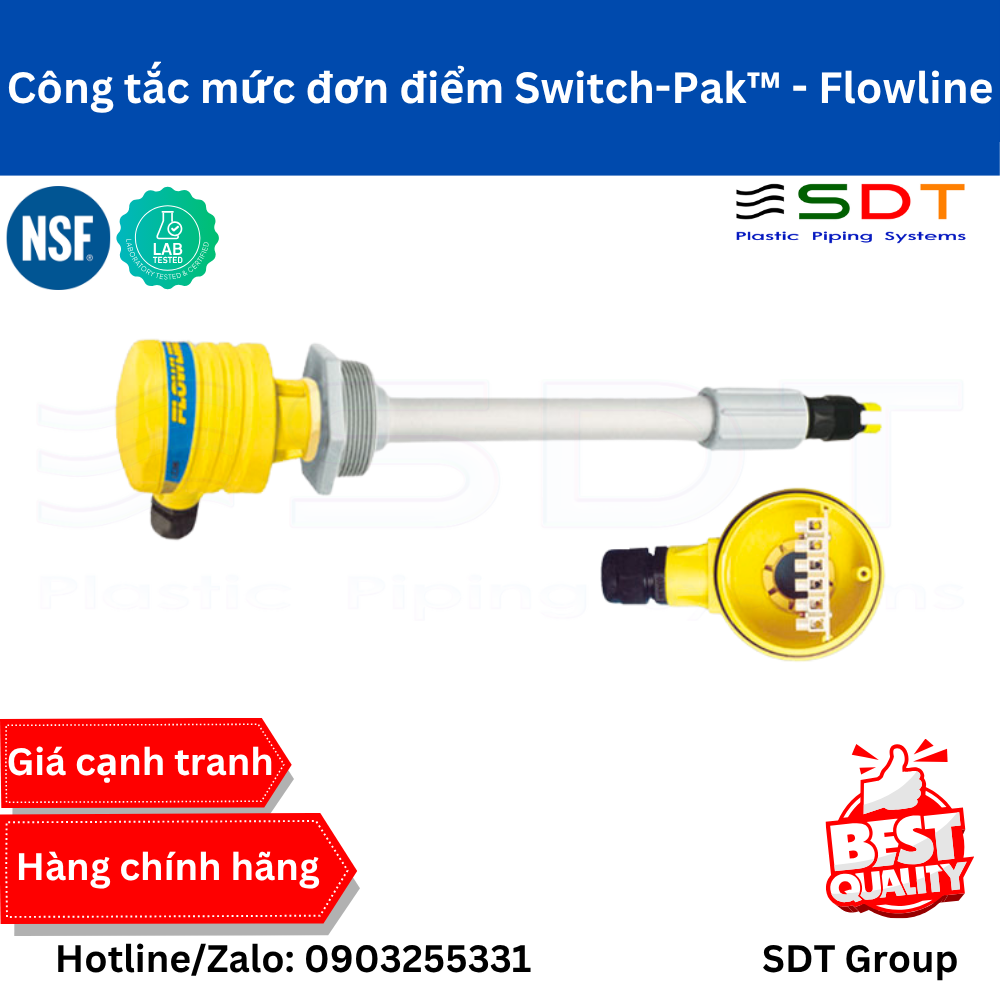

Switch-Pak™ AX13 with compact level transmitter

Application:

The intrinsically safe or general purpose level switch package provides high or low liquid level detection with one relay or reed switch output, and a compact junction box for wiring termination. Available in three level sensor technologies, choose the sensor type
based upon your application media. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, connected to a PLC or relay controller.

Features

• Rugged polypropylene or PVDF construction for use with corrosive liquids
• Available in intrinsically safe and general purpose classifications
• 60VA relay or 15VA dry contact switches selectable NO or NC via wiring
• Offered in three sensing technologies for broad application coverage
• Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment

Key Benefits

• Ideal single-point high or low level switch solution for PLC or controller input
• Available in three sensor technologies and two materials for all types of liquid media
