Công tắc mức đa điểm Smart-Trak™ - Flowline

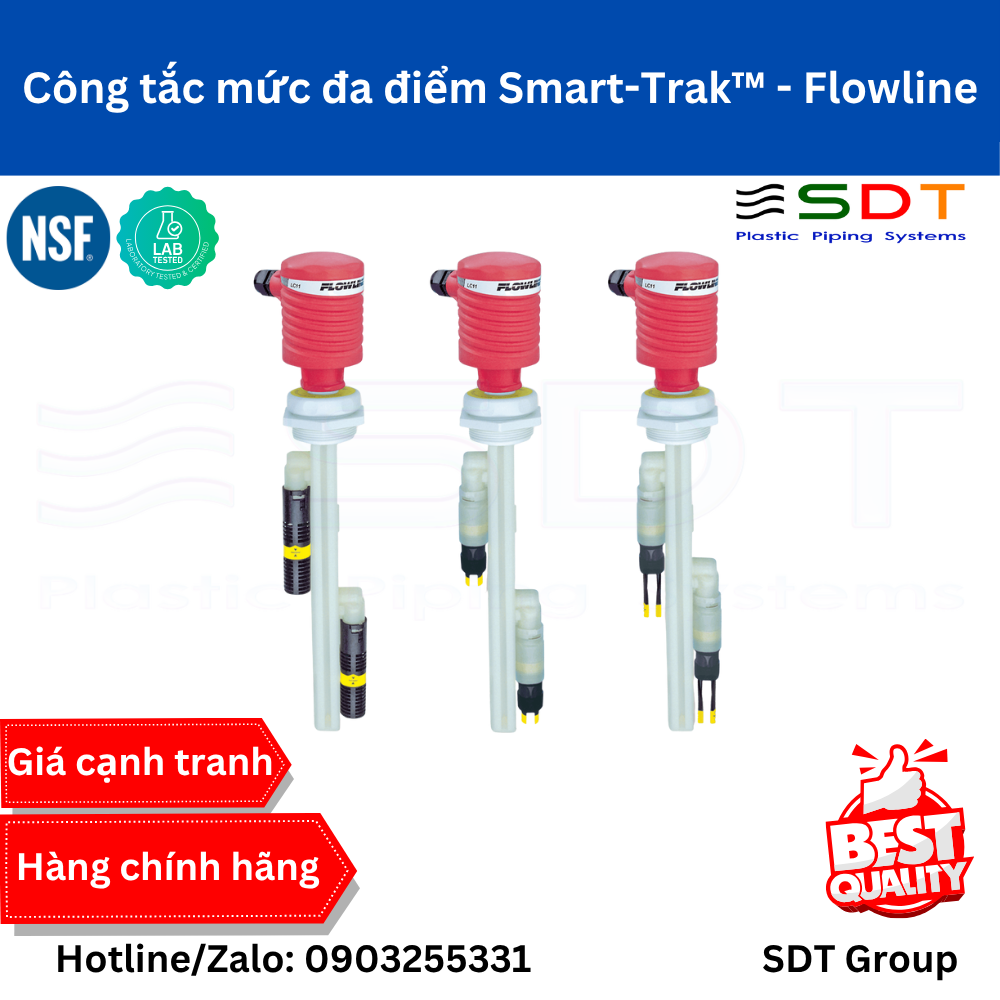

Smart Trak™ AX23

The general purpose level switch package provides automatic tank filling or emptying up to 10’ (3m) between two adjustable level switch points. The compact relay controller with optional strobe provides one latching 16A relay for pump or valve control. Offered in three sensor technologies, choose the type based upon your application media. This PP level switch package is selected for day tank, skid or machine, cooling tower, waste sump and process tank applications, requiring detection and control.

Application:

• Fail-safe relay control of pumps or valves with adjustable time delay
• Offered in three sensor technologies for broad application coverage
• Easy setup with LED indicators for sensor, power and relay status
• Rugged polypropylene construction for use with corrosive liquids
• Adjustable switch cars enable sensor position adjustments in the field
• Invert switch changes relay state from NO to NC without rewiring

Key Benefits

• Complete solution to automatically fill or empty a tank between two switch points with full pump or valve control - just add power
• Sensor positions are easily adjusted enabling fine tuning of the level switch points in the field

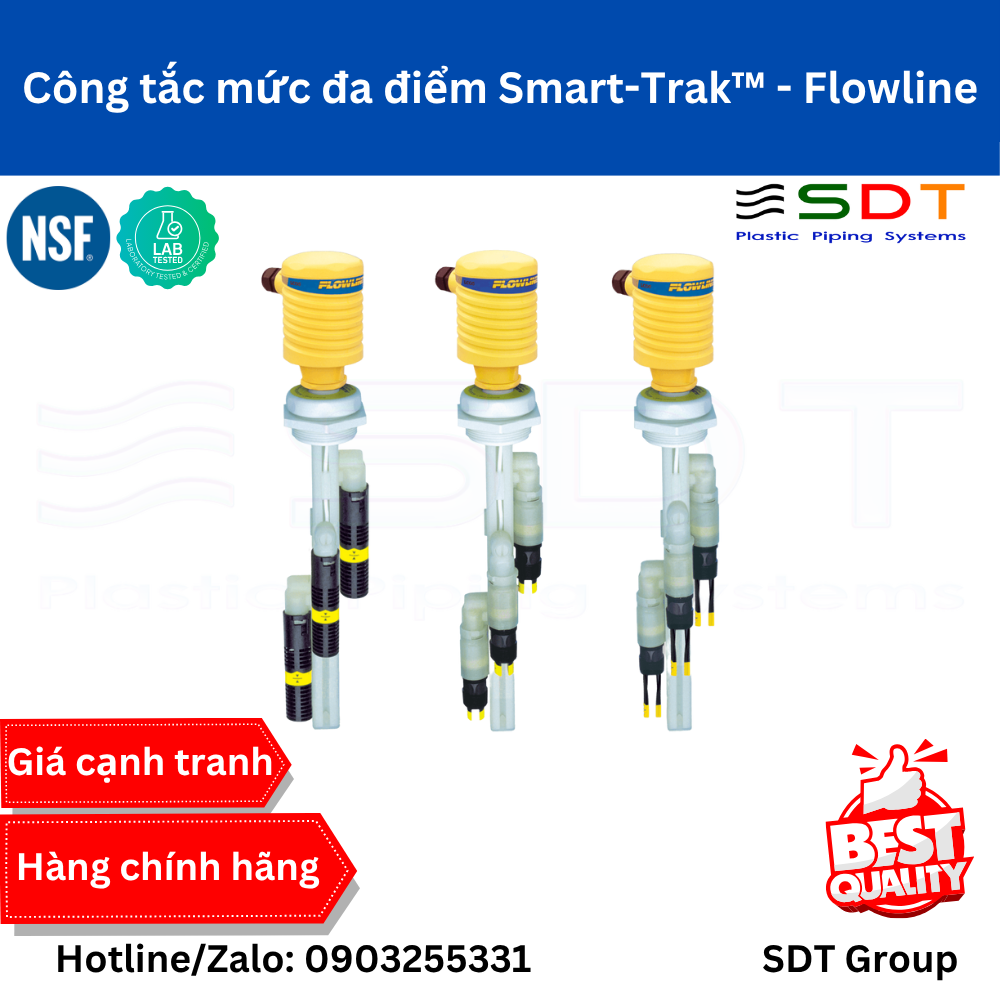

Smart-Trak™ AXXX

The intrinsically safe or general purpose level switch package provides liquid level detection up to 10’ (3m) with 1-4 adjustable level switch points and a compact junction box for wiring termination. Offered in three sensor technologies, choose the type based upon your application media. This PP level switch package is selected for day tank, skid or machine, cooling tower, waste sump or process tank applications, connected to a PLC or relay controller.

Application

• Rugged polypropylene construction for use with corrosive liquids
• Available in intrinsically safe and general purpose classifications
• 60VA relay or 15VA dry contact switches selectable NO or NC via wiring
• Offered in three sensor technologies for broad application coverage
• Adjustable level switch cars enable sensor position adjustments in the field
• Polypropylene junction box rated NEMA 4X with swivel base and terminal strip

Key Benefits

• Corrosion resistant multi-point level switch solution for PLC or controller input
• Sensor positions are easily adjusted enabling fine tuning of the level switch points in the fieldIP65
