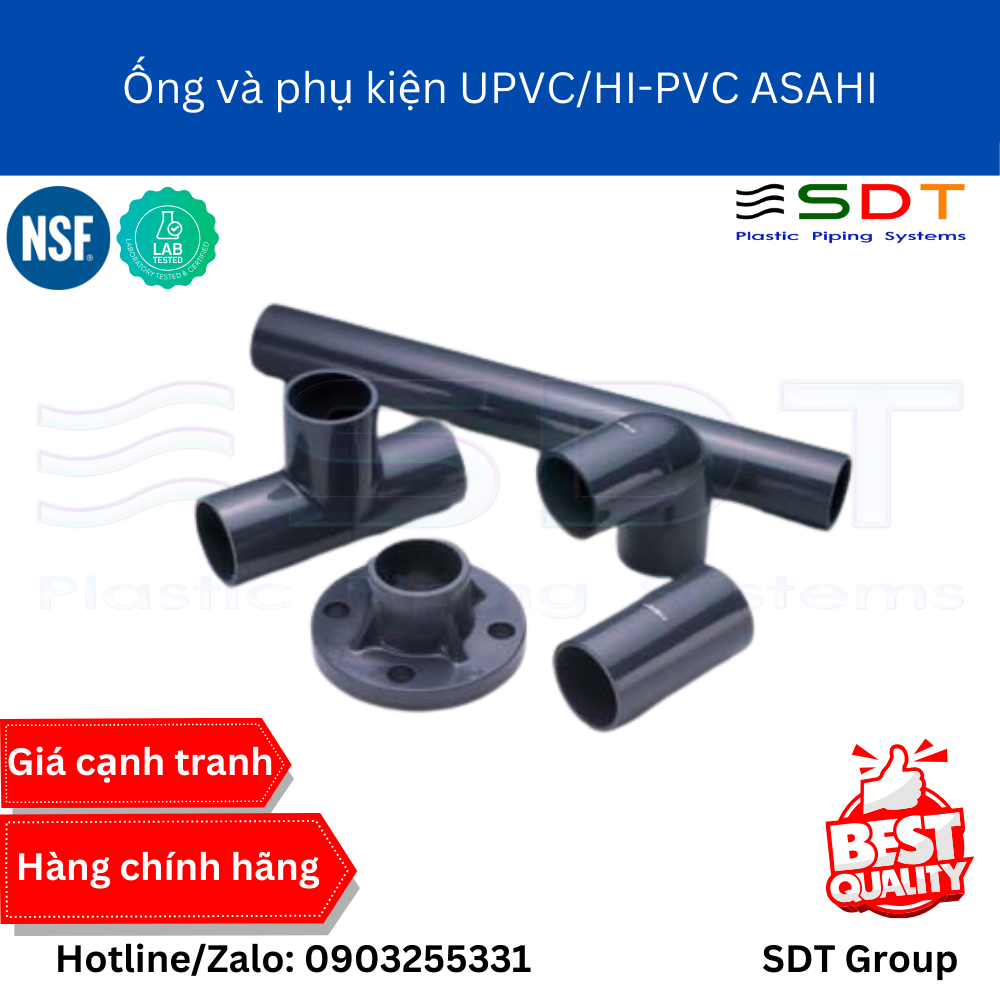

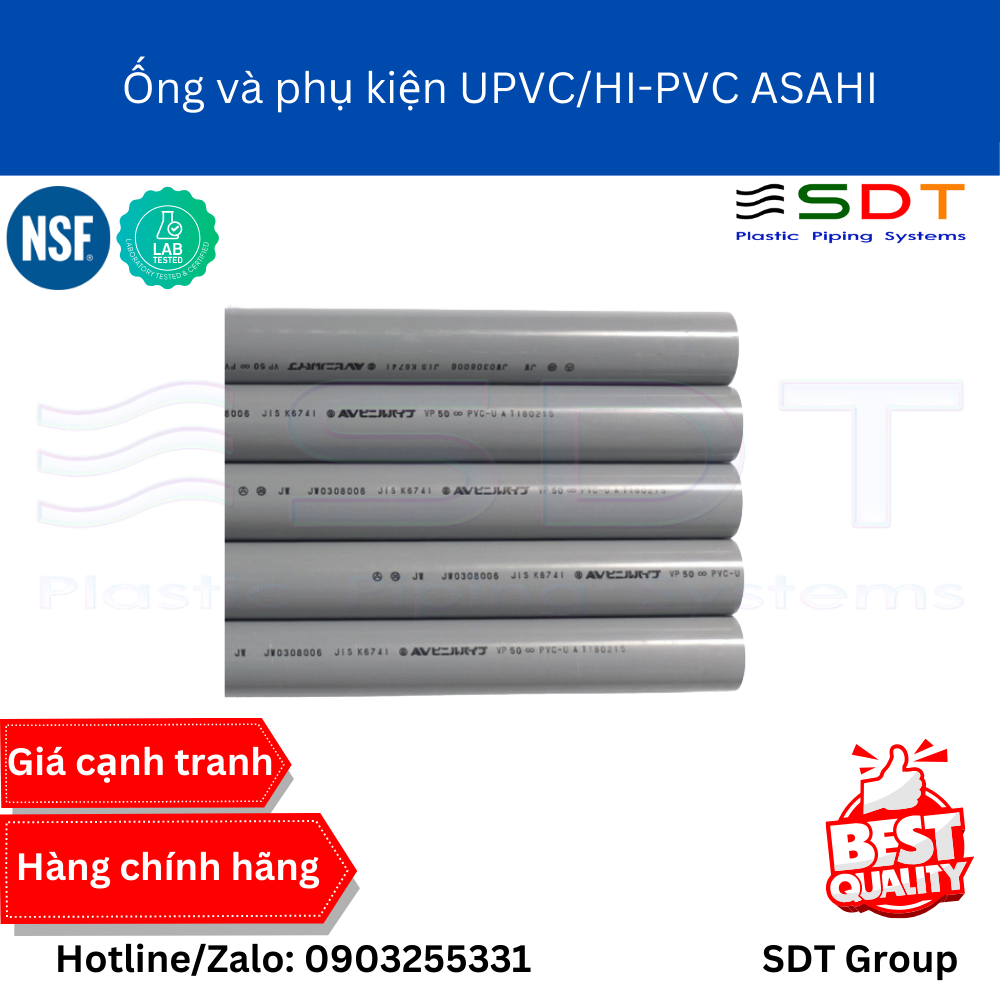

UPVC: Unplasticized Polyvinyl Chloride
HI-PVC: High Impact Unplasticized Polyvinyl Chloride
MAJOR PVC PIPE & FITTINGS FEATURES:
1 Excellent corrosion resistance and no need to worry about corrosion.
2 Great mechanical strength with its elasticity.
3 Excellent weather resistance and suffers less from alterations
such as deformation, discoloration and deterioration.
4 Flow resistance and friction coefficient are low.
5 No need to worry about electric leakage as it is insulated.
6 Hygienic because of unplasticized polyvinyl chloride.
7 No self-combustion ability with excellent self-extinguishing ability.
8 Easy to handle because of the weight being 1/6 of iron and 1/2
of aluminum and can be easily connected by the TS method.
9 Price and installation cost are low and it is economical due to
the semipermanent characteristic.
ỨNG DỤNG:
Chemical Piping ▶ Chemical/iron-making/nonferrous refining/power generating facilities, various facilities
Water Supply/Discharge/Waste Water Piping ▶ Buildings, plants, public facilities
Industrial Water Piping ▶ Plants, various facilities
Sea/Fresh Water Piping ▶ Aquariums, culture farms, sea/fresh water facilities
Agricultural Water Service Piping ▶ Public pipelines, facilities
Air-Conditioning Piping ▶ Plants, public facilities
PHÂN LOẠI
Vật liệu | Loại | Đầu ống | Kích thước | Cấp áp suất | Tiêu chuẩn |
UPVC | VP | trơn | 40A - 300A | 1.0MPa | JIS K 6741 |
UPVC | VU | trơn | 40A - 500A | 0.6MPa | JIS K 6741 |
HI-PVC | HIVP | trơn | 40A - 300A | 1.0MPa | JIS K 6741 |
UPVC | VP | 1 đầu nong | 40A - 500A | 1.0MPa | JIS K 6741 |
UPVC | VU | 1 đầu nong | 40A - 500A | 0.6MPa | JIS K 6741 |
UPVC | VP | 1 đầu roăng | 50A - 500A | 1.0MPa | JIS K 6741 |
UPVC | VM | 1 đầu roăng | 50A - 500A | 0.8MPa | JIS K 6741 |
UPVC | VU | 1 đầu roăng | 50A - 500A | 0.6MPa | JIS K 6741 |
UPVC | VPW | trơn | 13A - 150A | 1.0MPa | JIS K 6742 |
HI-PVC | HIVPW | trơn | 13A - 150A | 1.0MPa | JIS K 6742 |
BẢNG MÃ LỰA CHỌN CÁC LOẠI ỐNG PVC ASAHI
BẢNG MÃ LỰA CHỌN CÁC LOẠI PHỤ KIỆN PVC ASAHI
ĐẶC TÍNH VẬT LIỆU:
ÁP SUẤT LÀM VIỆC TỐI ĐA THEO NHIỆT ĐỘ
