Cảm biến đo pH-ORP 2724-2725-2726 GF Signet

The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrode design and uses the unique foul-proof patented DryLoc® connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life.

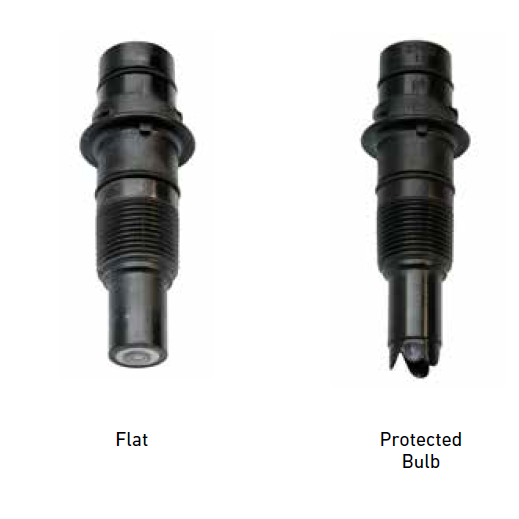

The DryLoc connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton® threaded sensor body and choice of flat pH, bulb pH, or flat ORP sensing elements provides broad range of chemical compatibility for a wide variety of applications.
There are two optional sensing versions, HF and LC, available. The quick temperature response is available in either a PT1000 or 3 KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments. The 2724-2726 electrodes are general-purpose sensors ideal for a wide range of applications. The sensors incorporate ¾" NPT or ISO 7-1 R¾ threads for installing into standard pipe-tees. They can also be mounted directly into Signet standard fittings.

Features

• Patented reference design for exceptional performance*
• Mounts in Signet standard fittings from DN15 to DN100 (½ to 4 in.)
• ¾” NPT or ISO 7/1-R 3/4 threaded sensors for use with reducing tees DN15 to DN100 (½ to 4 in.)
• Special design allows for installation at any angle, even inverted or horizontal
• Ryton® (PPS) body for broad range of chemical compatibility

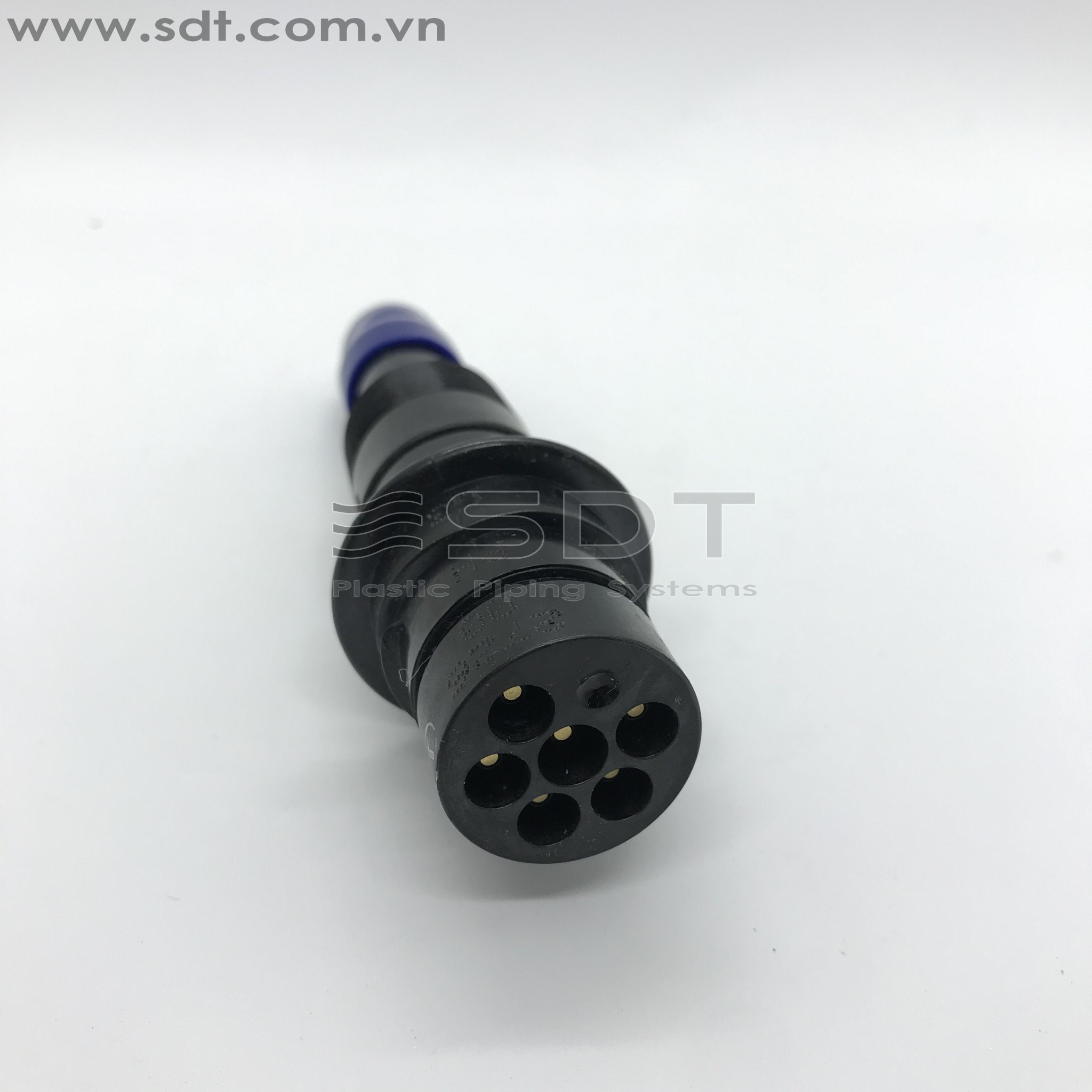

• Patented DryLoc® connector with gold plated contacts
• Quick temperature response
• Bulb and flat HF resistant glass available for trace HF, in less than 2% concentration applications
• Low conductivity sensor available for liquids down to 20 μS/cm

Fields of Application:
• Water & Wastewater Treatment
• Neutralisation Systems
• Scrubber Control
• Effluent Monitoring
• Surface Finishing
• Heavy Metal Removal and Recovery
• Toxics Destruction
• Sanitization Systems
• Commercial Pools & Spas
• Aquatic Animal Life Support Systems
• Process Control

Order Information

Signet pH Electrode Cleaning & Conditioning

Signet ORP Electrode Cleaning & Conditioning
